Buying 1U3352RC bucket teeth starts with identifying the tooth system already installed on the bucket. A matching number helps narrow the search, but it does not settle the adapter fit, retaining hardware or suitability for the job.
For distributors, importers and maintenance teams, the useful comparison is the complete replacement specification: tooth profile, mounting interface, hardware and supply scope. This guide explains what the reference identifies and how to prepare an inquiry that a supplier can check before an order is placed.

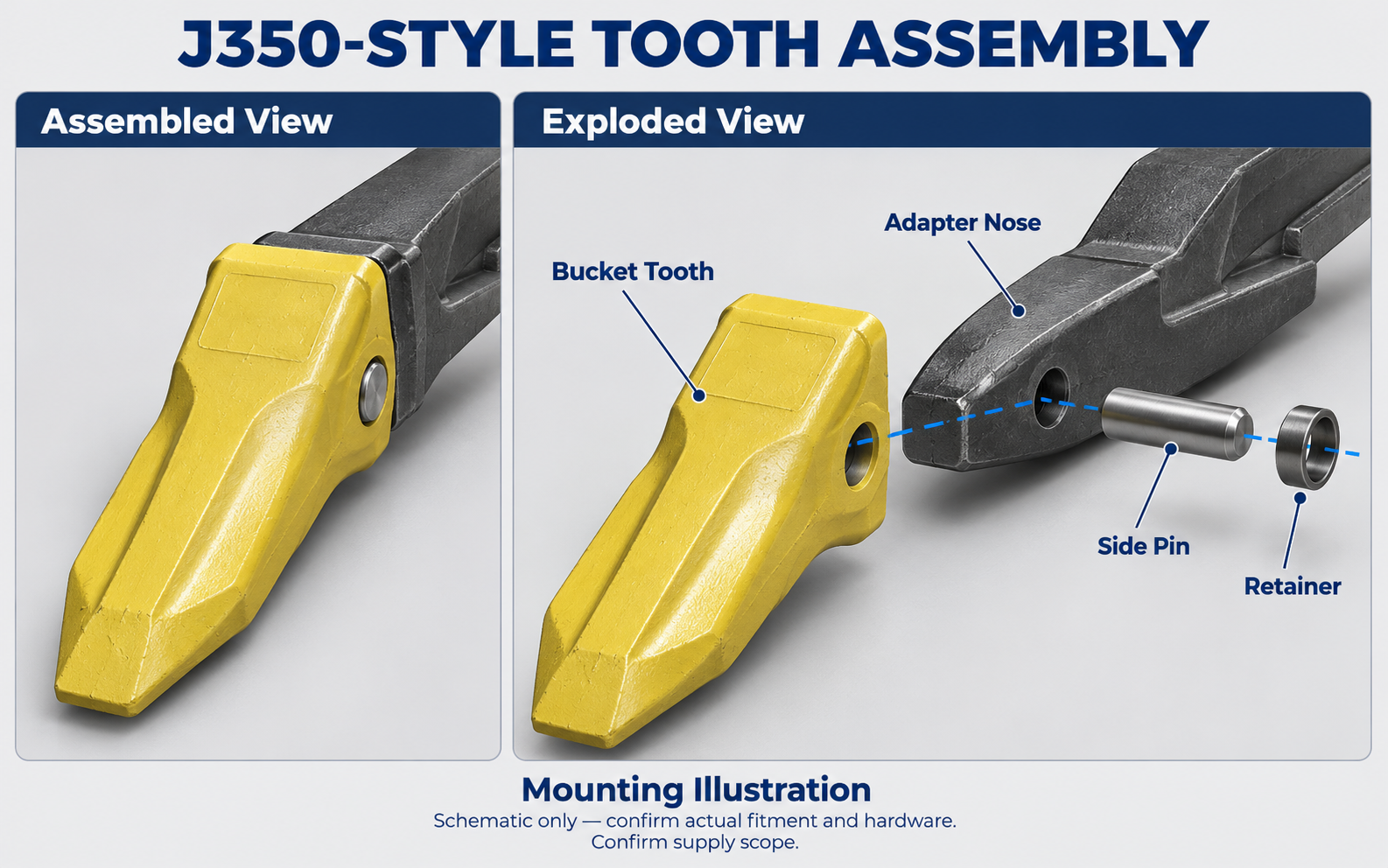

Aftermarket catalogs identify 1U3352RC as a rock chisel tooth for the Caterpillar-style J350 system. It is a replaceable bucket tip fitted over a compatible adapter nose and retained through a side-pin arrangement. Its working end forms part of the bucket's ground-engaging edge.
Keep the RC suffix in your inquiry. Caterpillar lists 1U-3352 as a J350 general-purpose tip, while aftermarket catalogs list 1U3352RC as a rock chisel profile. These references should not be treated as identical product descriptions.
The formats 1U3352RC and 1U-3352RC commonly appear in supplier listings. Additional suffixes require clarification: ask whether they identify a different profile, manufacturing version or supplier-specific design. A shared number is a starting point for comparison, not proof that every offered version has the same specification.
A machine model provides useful context, but the bucket and tooth system currently fitted to that machine determine the connection you must match. Replacement buckets and previous adapter changes can make a model-only search unreliable.

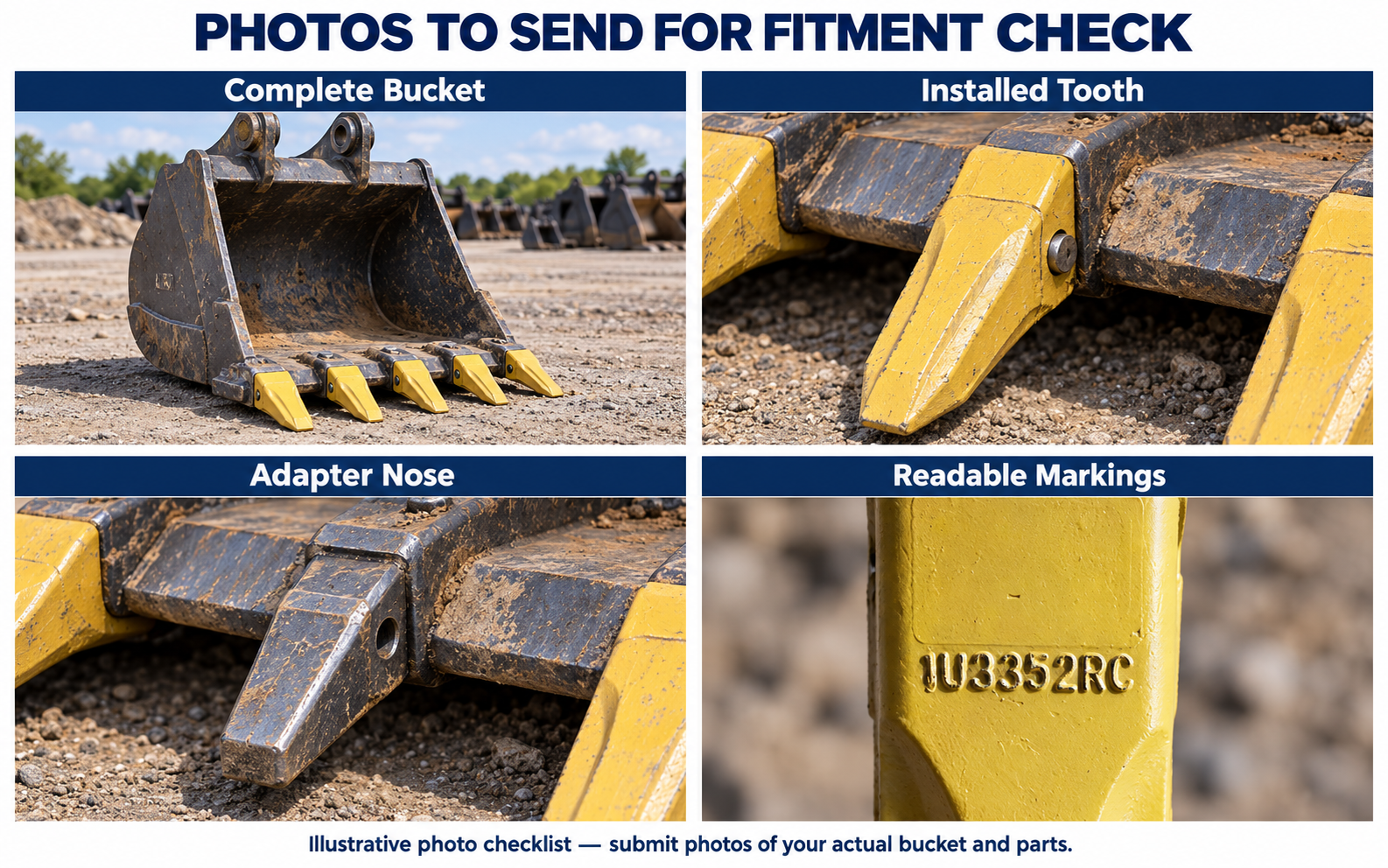

Start with clear photographs of the complete bucket, an installed tooth, the adapter nose and any readable markings. Record the bucket manufacturer and identification plate where available. Include the machine model and serial number so the supplier can investigate the equipment configuration alongside the physical connection.
When reviewing replacement bucket teeth, ask for confirmation against the existing adapter. Do not assume that a tooth described for a particular excavator will fit every bucket used on that machine. If the adapter cannot be identified, agree on the additional measurements or sample checks needed before purchasing.
For a useful 1U3352RC dimensions check, request a drawing for the exact version being quoted. Compare measurements taken from the same surfaces and in the same orientation.
The review should cover overall length, pocket opening width and height, seating geometry, and pin-hole size and position. Ask the supplier to identify the measurement endpoints on the drawing. An outside width and an internal pocket width describe different features and should not be compared as though they were interchangeable.
Treat measurements from a worn tooth as identification evidence, not an original manufacturing specification. Wear can alter the working end and connection surfaces. If figures disagree, resolve the drawing revision and measurement method before deciding which value applies. Confirm unit weight separately for the quoted tooth and distinguish it from packed shipment weight.
The retaining components deserve their own line in the inquiry. Confirm the pin reference, retainer reference and suitability for the proposed tooth-and-adapter combination.
A catalog reference to a retention system does not establish what is included in a quotation. Ask whether the offer covers teeth only, teeth with pins and retainers, or complete assemblies with adapters. Specify the quantity of each component.
When discussing bucket tooth pins and retainers, send photographs of the existing hardware if its identity is uncertain. Have the supplier confirm the replacement arrangement as a complete set. A different pin or retainer should not be accepted solely because it can be inserted into the opening.
Rock chisel profiles are offered for rocky or compacted excavation conditions. That description does not establish suitability for every rock type, impact level or operating environment.
Describe the material being excavated, whether it is loose or compacted, and the main problem with the current teeth. Useful observations include rapid tip wear, repeated breakage, uneven wear or difficulty maintaining penetration. Include photographs and operating records where available.
Use this information to discuss profile selection with the supplier. Claims about longer life or improved productivity need comparable operating evidence. A product name alone cannot establish a service-life advantage for your site.
The following inspection points are general maintenance guidance, not product-specific wear limits. Follow the equipment and tooth-system manufacturer's instructions, with the machine isolated and the bucket safely supported before inspection or replacement.
Check for abnormal movement, missing retaining components, visible damage and uneven wear. Inspect the adapter nose and retention area as well as the tooth. Record whether the same problem affects one position or several positions across the bucket.
If the connection is worn or damaged, obtain a qualified assessment before fitting another tooth. New teeth cannot be assumed to correct an unsuitable adapter interface. Replacement timing should follow the applicable wear criteria and actual condition, rather than an unsupported universal operating-hour interval.
For bulk orders, connect the quotation to an identifiable product version. Request the supplier's drawing reference, product photographs and agreed inspection requirements.
Where material, hardness or mechanical properties matter to the purchase, ask what documentation is available and what the reported results represent. Relevant details may include the material specification, inspection location, test method, sampling plan and batch identification. Agree on these requirements before production or order acceptance.
Confirm the actual manufacturing route for the quoted item rather than relying on a general factory capability list. Photographs of casting or forging equipment do not establish which process produced a particular tooth. The same principle applies to heat treatment and inspection claims.

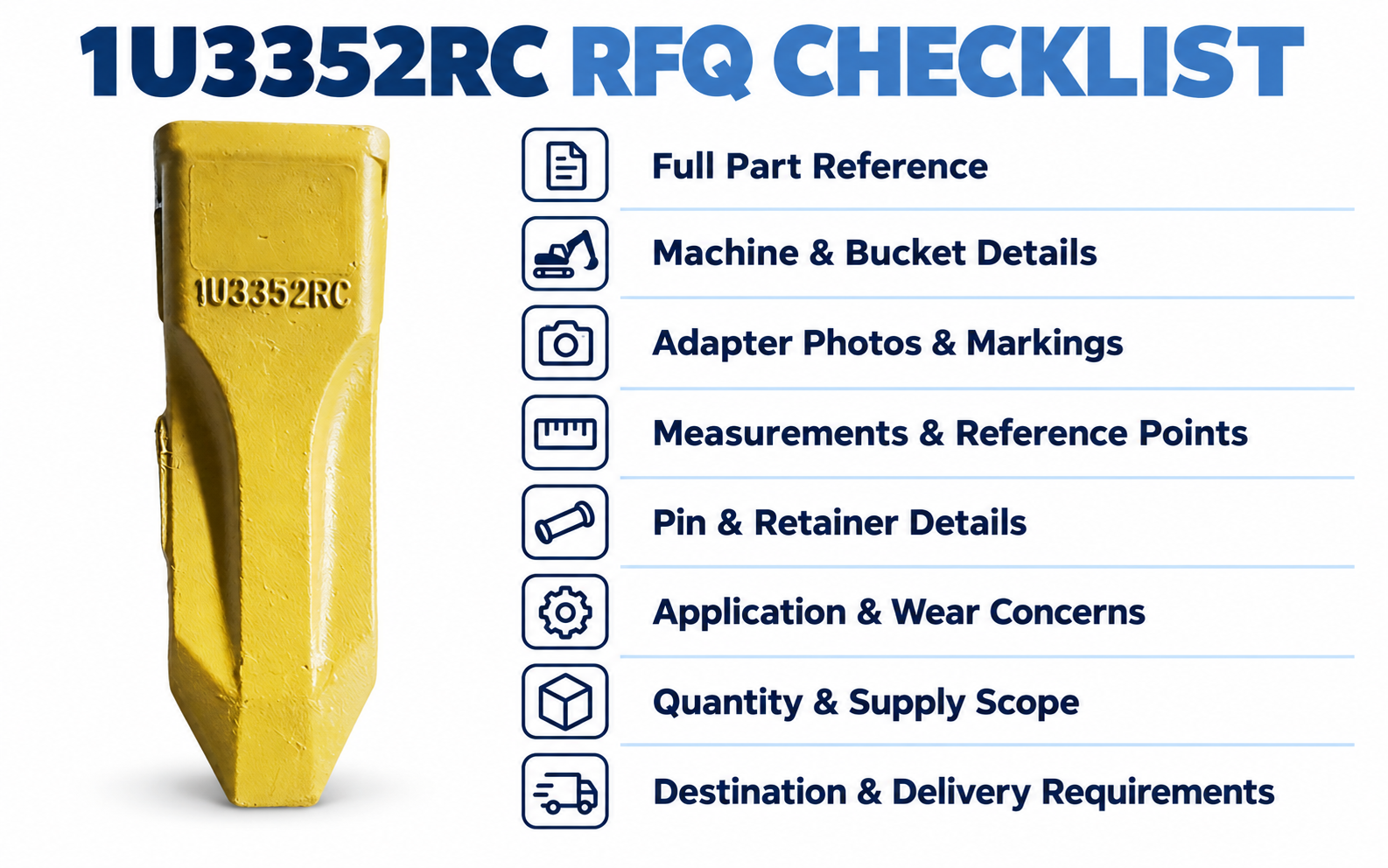

Before requesting a price, gather:
· The complete tooth reference, including every suffix.
· Machine model, serial number and bucket identification, where available.
· Adapter markings and photographs of the existing connection.
· Tooth and pocket measurements, with reference points clearly marked.
· Existing pin and retainer details.
· Working material, wear observations and replacement concerns.
· Required quantity and whether hardware or adapters are needed.
· Delivery destination, requested timing and packaging requirements.
Ask for a quotation that separates product identification, supply scope and commercial terms. For repeat purchases, retain the approved drawing revision and sample reference so later orders can be checked against the same specification.
YASSIAN is a China-based factory supplier of aftermarket construction machinery wear parts and G.E.T. Send your 1U3352RC bucket teeth reference, adapter photos and purchasing requirements through our parts inquiry page. These details provide the basis for discussing the proposed replacement, fitment checks and quotation scope before you place an order.
