Excavator Fuel Filter Vs Fuel Water Separator: What Is The Difference?

Clean diesel fuel is essential for reliable excavator operation. Dirt, rust, water and other contaminants can enter the fuel system during storage, transportation or refueling. Without effective filtration, these contaminants may affect fuel flow and increase wear on pumps, injectors and other fuel-system components.

Although an excavator fuel filter and a fuel water separator both help protect the engine, they do not always perform the same job. Understanding their functions, installation positions and maintenance requirements can help equipment owners and parts buyers select the correct replacement.

Quick Answer: Fuel Filter vs Fuel Water Separator

An excavator fuel filter is mainly designed to remove solid contaminants such as dirt, rust and fuel-tank deposits. A fuel water separator is primarily designed to separate water from diesel fuel, although many separator elements also remove solid particles.

Depending on the excavator’s fuel system, these may be two separate components or combined into one primary filtration assembly. A typical system may follow this flow:

Fuel Tank → Primary Filter / Water Separator → Secondary Fuel Filter → Fuel Pump → Injectors

Because fuel systems vary between machines and engines, the two components should not be treated as automatically interchangeable.

What Is an Excavator Fuel Filter?

An excavator fuel filter removes solid contaminants from diesel before the fuel reaches sensitive engine components. Contamination can come from dirty storage tanks, aging fuel containers, refueling equipment or sediment inside the machine’s fuel tank.

The filter media traps particles while allowing diesel to flow through the system. Depending on the design, an excavator may use a primary fuel filter, a secondary fuel filter or both.

The primary filter is generally the first filtration stage and may capture larger particles. The secondary or final fuel filter provides finer filtration before the fuel enters the pump and injectors. Some machines use spin-on filters, while others use cartridge elements installed inside reusable housings.

A replacement filter should never be selected by appearance alone. Two filters may look similar but have different threads, gasket dimensions, internal structures, filtration requirements or flow characteristics.

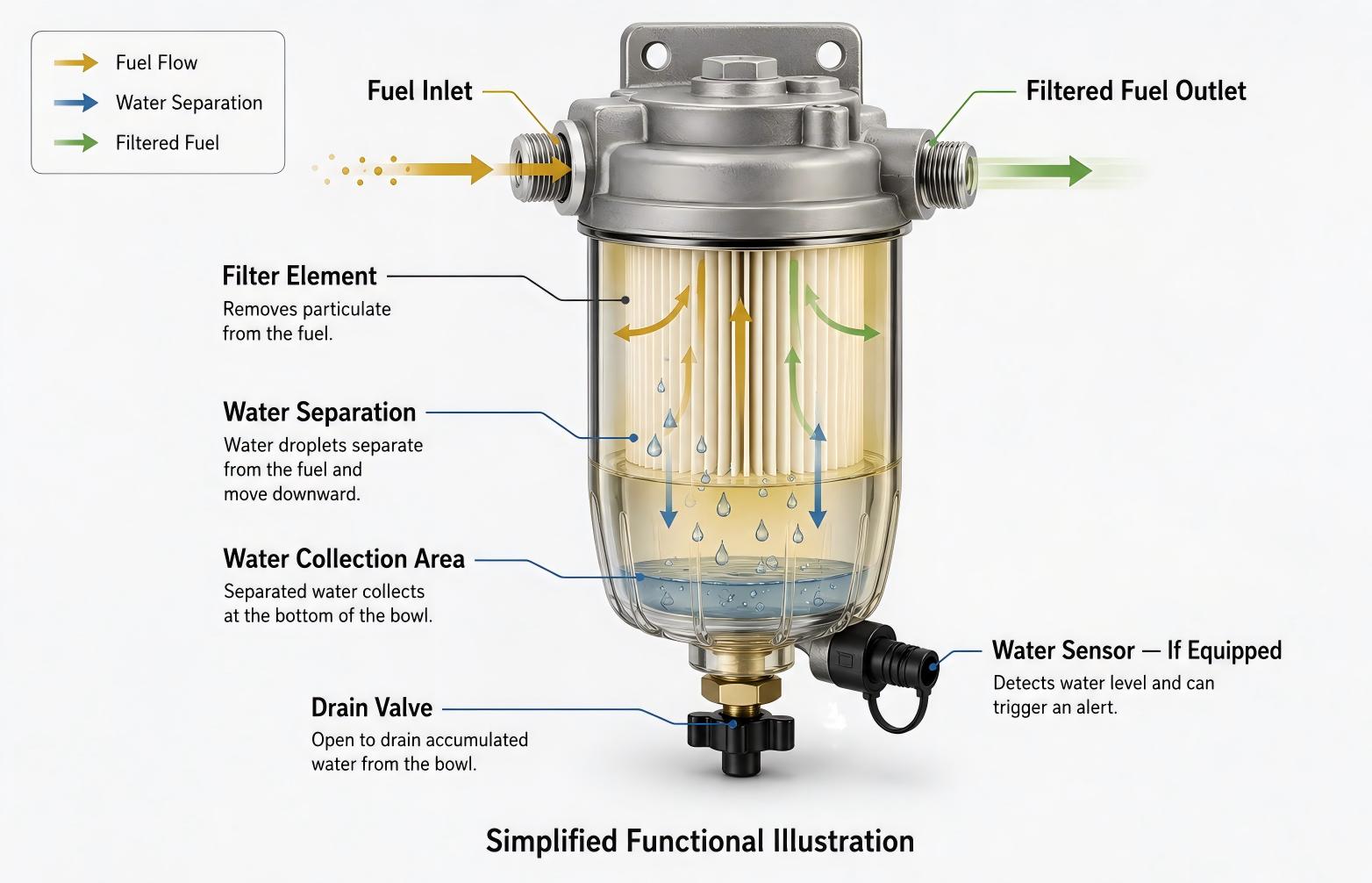

What Is a Fuel Water Separator?

A fuel water separator is designed to remove water from diesel fuel before it travels farther through the fuel system. Water can enter the fuel because of condensation, contaminated fuel deliveries, unsuitable storage conditions or damaged fuel-tank seals.

Many separators use a coalescing process that helps small water droplets combine into larger droplets. The water then settles into a collection area or bowl, where it can be inspected and drained.

Depending on the machine, the separator may include:

· A transparent or metal collection bowl

· A drain valve

· A replaceable filter element

· A water-level sensor

· An electrical connector for a water-in-fuel warning

Not every separator uses the same structure. Some excavators have a separate fuel water separator, while others use a primary filter assembly that combines particle filtration and water separation.

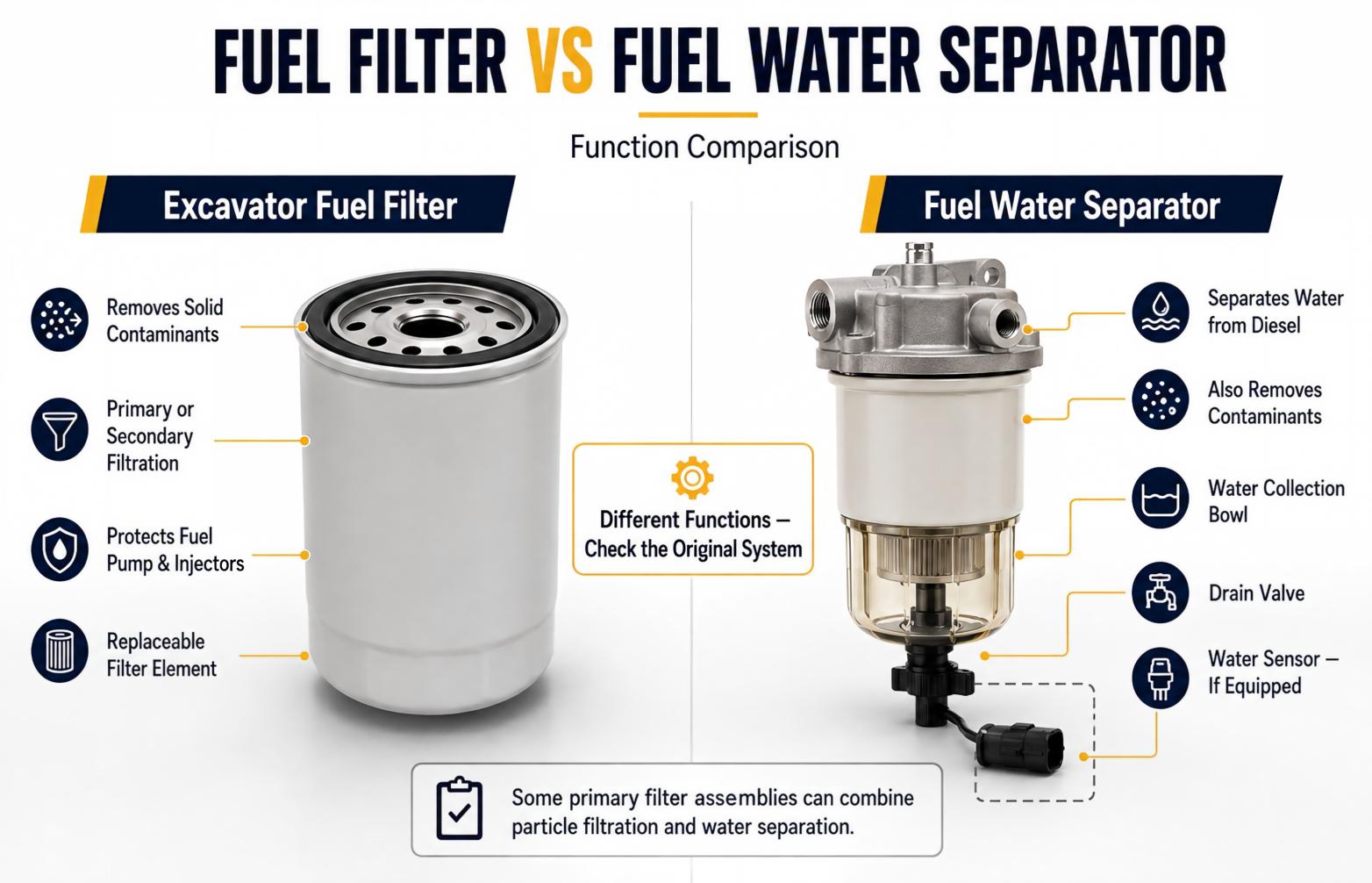

Key Differences Between the Two Components

Comparison	Excavator Fuel Filter	Fuel Water Separator
Primary function	Removes solid contaminants	Separates water from diesel
Typical position	Primary or secondary filtration stage	Usually before the final fuel filter
Collection bowl	Not always included	Commonly included
Drain valve	Usually unnecessary	Often included
Maintenance	Replace the filter element	Drain water and replace the element
Extra checks	Thread, gasket and dimensions	Bowl, drain, sensor and connector

The exact design depends on the excavator and engine. Always confirm the original filtration system before ordering replacement parts.

How Do They Work Together?

The fuel water separator and excavator fuel filter provide different stages of protection.

The separator is normally positioned early in the system, where it removes water and may capture larger contaminants. The secondary fuel filter then removes finer particles before the fuel reaches the pump and injectors.

This staged arrangement is especially useful for excavators working in mines, quarries, remote construction sites or humid environments, where fuel may be stored for longer periods or transferred between several containers.

Removing one filtration stage or installing an unsuitable replacement could reduce the protection provided by the original system. Even when two products have the same thread, they may not provide the same filtration, water separation or sealing performance.

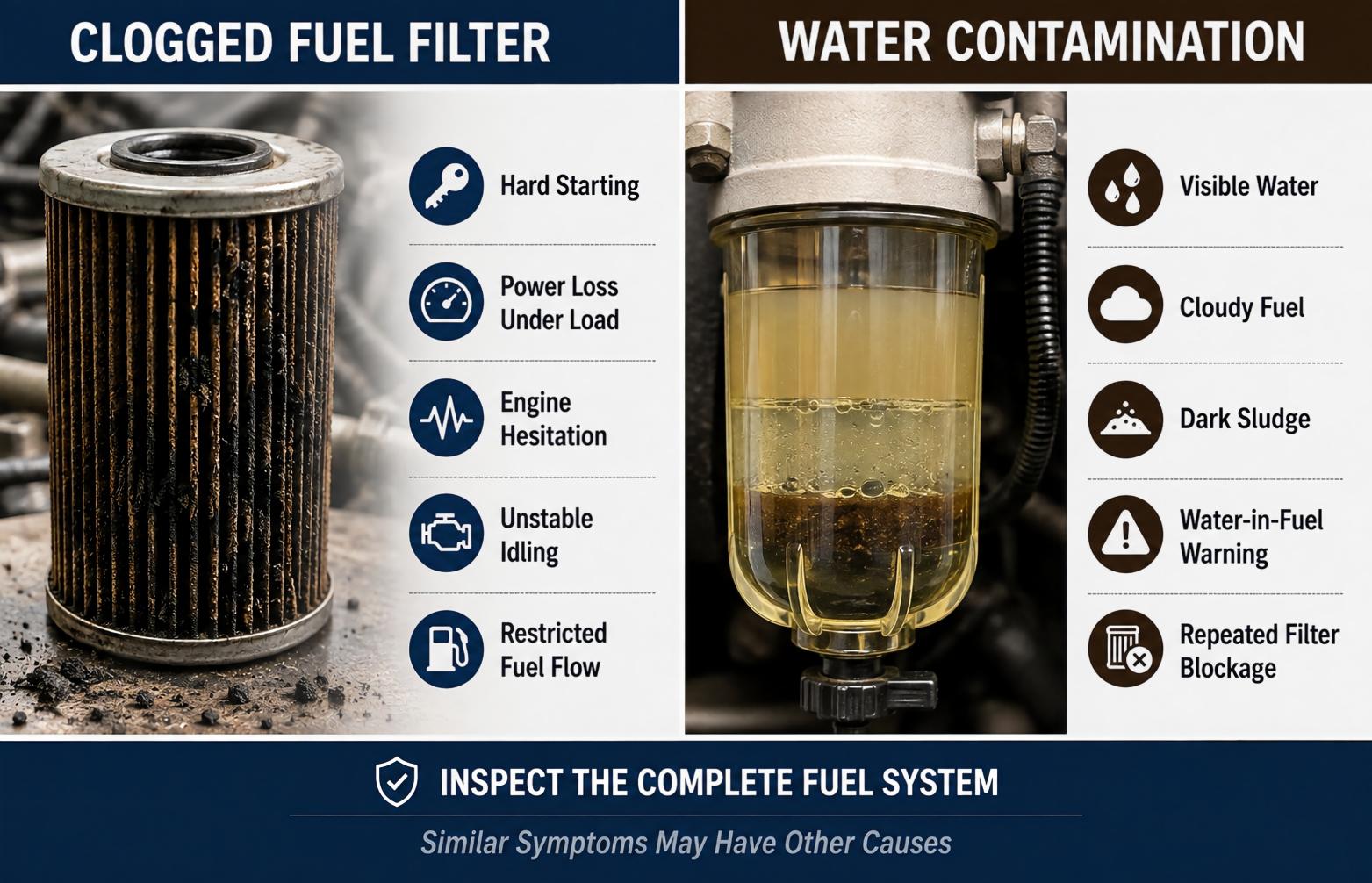

Signs of a Clogged Excavator Fuel Filter

As contamination builds up inside the filter, fuel flow may become restricted. Possible symptoms include:

· Difficult or delayed engine starting

· Loss of power under load

· Engine hesitation during operation

· Rough or unstable idling

· Reduced fuel flow

· Unexpected engine shutdown

· Fuel-system warning indicators

These symptoms do not prove that the filter is the only cause. Similar problems can also result from damaged fuel lines, air entering the system, poor-quality diesel, injector issues or fuel-pump problems. The complete fuel system should be inspected before replacing parts.

Signs of Water in the Fuel System

A fuel water separator requires attention when water or contamination becomes visible in the collection bowl. Other warning signs may include:

· A water-in-fuel warning light

· Cloudy or separated fuel in the bowl

· Dark sludge in the collection area

· Corrosion around fuel-system components

· Repeated filter blockage

· Rough engine operation

· Difficult starting

If water repeatedly returns after draining, the source of the contamination should be investigated. Check the fuel tank, storage containers, refueling equipment, tank cap and fuel supplier. Replacing the separator without addressing the source may only provide a temporary solution.

How to Choose the Correct Replacement

Start with the current filter Part Number whenever it is available. Then confirm the excavator model, engine model and machine serial number if required.

For an excavator fuel filter, check:

· OEM or reference Part Number

· Overall height and outer diameter

· Thread size or cartridge dimensions

· Gasket outside and inside diameters

· Primary or secondary filter position

· Required filtration and flow characteristics

For a fuel water separator, also check:

· Bowl type and connection

· Drain-valve design

· Water sensor

· Electrical connector

· Sealing arrangement

· Complete assembly or replacement element requirement

Distributors and importers managing several applications should prepare a Part Number list rather than relying only on equipment names. The same excavator model may use different filters because of engine options, production changes or regional configurations.

Fuel Filtration Maintenance Tips

Follow the excavator or engine manufacturer’s maintenance instructions for inspection and replacement intervals. Actual service requirements may change according to fuel quality, operating hours and working conditions.

Keep the mounting area clean during replacement, use the correct seal or O-ring and inspect for leaks after installation. If the system has been opened, prime it according to the equipment manual to remove trapped air.

The separator bowl should also be inspected regularly. Collected water must be drained safely and disposed of according to local requirements.

Frequently Asked Questions

Is a fuel filter the same as a fuel water separator?

No. A fuel filter primarily removes solid particles, while a fuel water separator focuses on removing water. However, some primary filtration assemblies combine both functions.

Does every excavator have a fuel water separator?

Not necessarily. The filtration layout depends on the engine and original equipment design. Check the machine manual or installed components.

Can a fuel water separator replace a standard fuel filter?

Usually not without technical confirmation. Similar size or thread does not guarantee the same function, filtration performance, sensor configuration or compatibility.

How often should an excavator fuel filter be changed?

Use the manufacturer’s recommended service interval. Inspect or replace it sooner when fuel contamination, restricted flow or abnormal engine operation is found.

Conclusion

An excavator fuel filter protects the fuel system mainly by removing solid contaminants, while a fuel water separator helps prevent water from reaching critical engine components. Many excavators use both as part of a staged filtration system.

Before ordering a replacement, confirm the Part Number, machine and engine model, filter position, dimensions, bowl design and sensor configuration. If compatibility is unclear, provide your existing filter number and product photos so the application can be reviewed before
