Views: 1 Author: Site Editor Publish Time: 2026-08-27 Origin: Site
Choosing the correct excavator track link size is essential for proper undercarriage performance. Two track links may look similar, but differences in track link pitch, link count, pin diameter, bushing diameter, rail dimensions, or bolt hole pattern can make them incompatible.
For distributors, importers, contractors, and equipment owners, identifying the right track link requires more than matching the machine model. Accurate measurements help reduce ordering mistakes, poor sprocket engagement, premature wear, and unnecessary downtime.
This guide explains the key excavator track link dimensions, how to measure them, and what buyers should confirm before ordering.

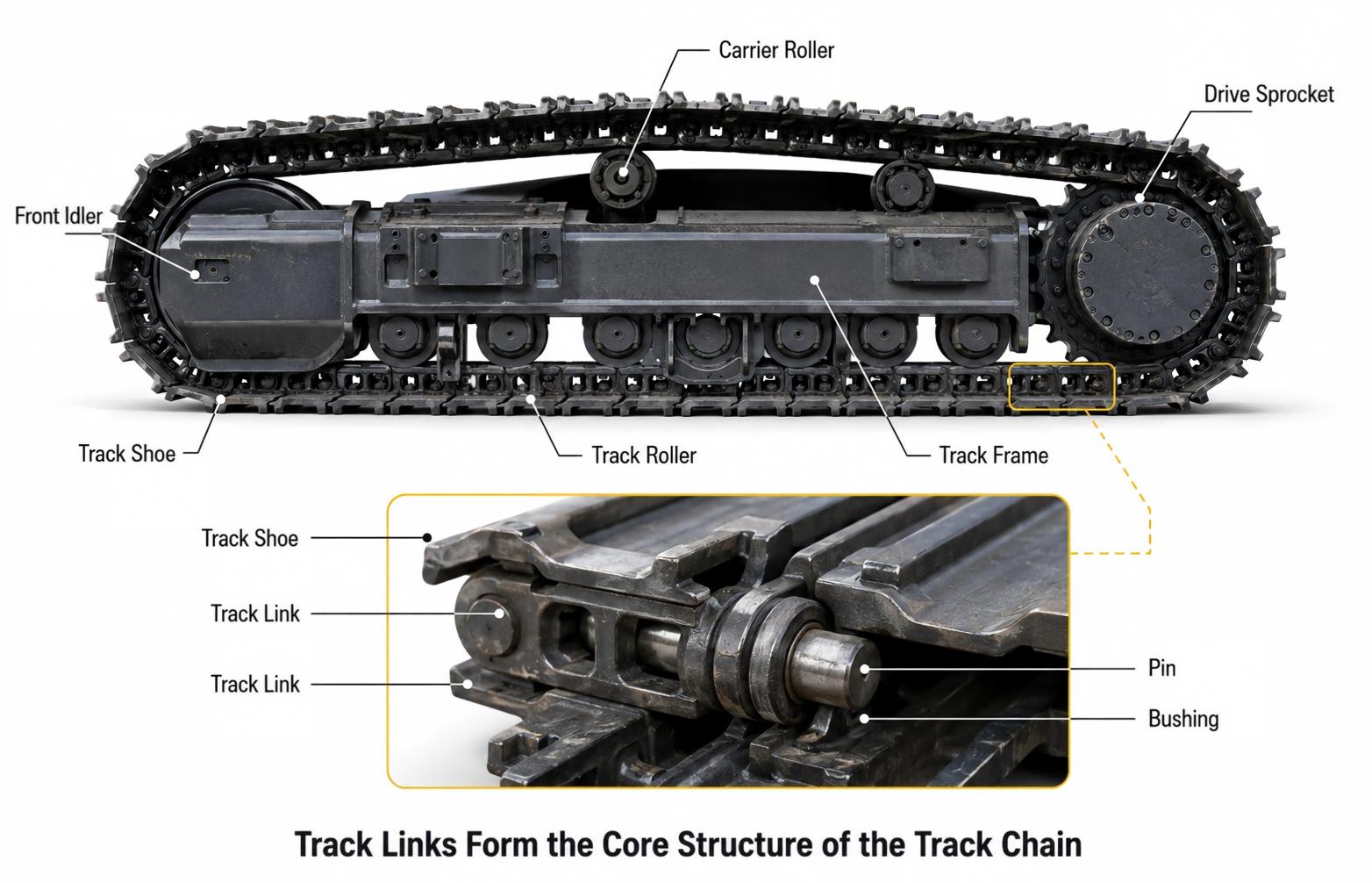

A track link is one of the main structural parts of an excavator track chain. Multiple links are connected by pins and bushings to form a complete track chain assembly.
Track link size usually includes:
l Track pitch
l Link height
l Rail height
l Rail width
l Link width
l Pin diameter
l Bushing diameter
l Bushing length
l Bolt hole size and spacing
l Link count
One measurement alone is rarely enough to confirm compatibility.
Track link pitch is one of the most important specifications when identifying an excavator track chain.
Track pitch generally means the center-to-center distance between two adjacent track pins.
Correct track chain pitch is important because the chain must engage properly with the drive sprocket. Incorrect pitch may cause:
l Poor sprocket engagement
l Abnormal vibration
l Track jumping
l Increased bushing wear
l Faster sprocket wear
l Reduced undercarriage life
Always verify pitch before ordering a replacement track chain.
First, clean the track chain so the pins and bushings are clearly visible. Remove mud, gravel, and packed material that may affect measurement accuracy.

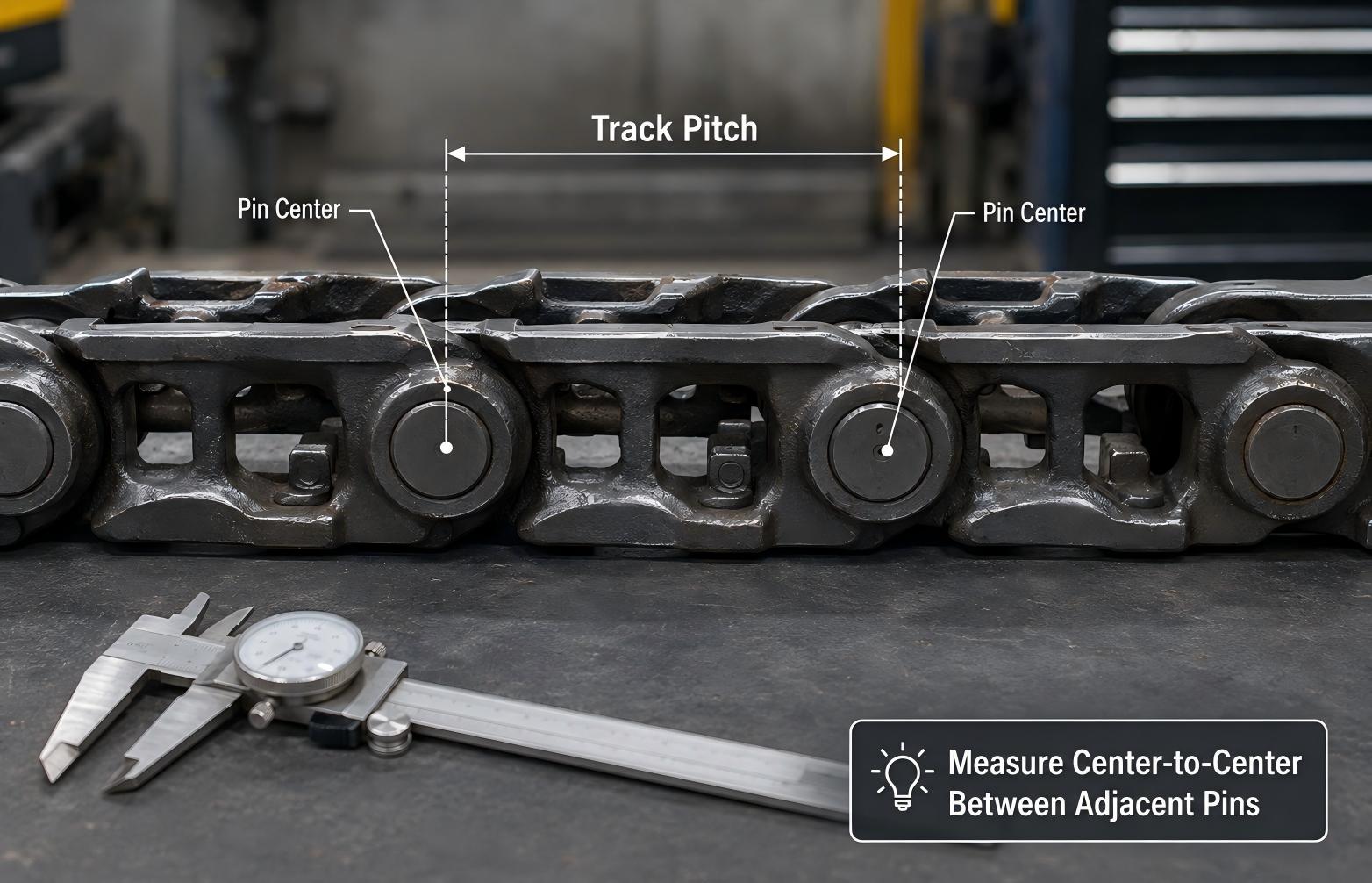

Locate two adjacent track pins and measure from the center of one pin to the center of the next.
For a worn chain, measuring across several pitches and dividing the total distance by the number of pitches can improve accuracy.
Pin and bushing wear may gradually increase the effective pitch. This is commonly called pitch elongation.
For this reason, heavily worn chain measurements should be compared with the machine model, part number, or supplier specifications whenever possible.

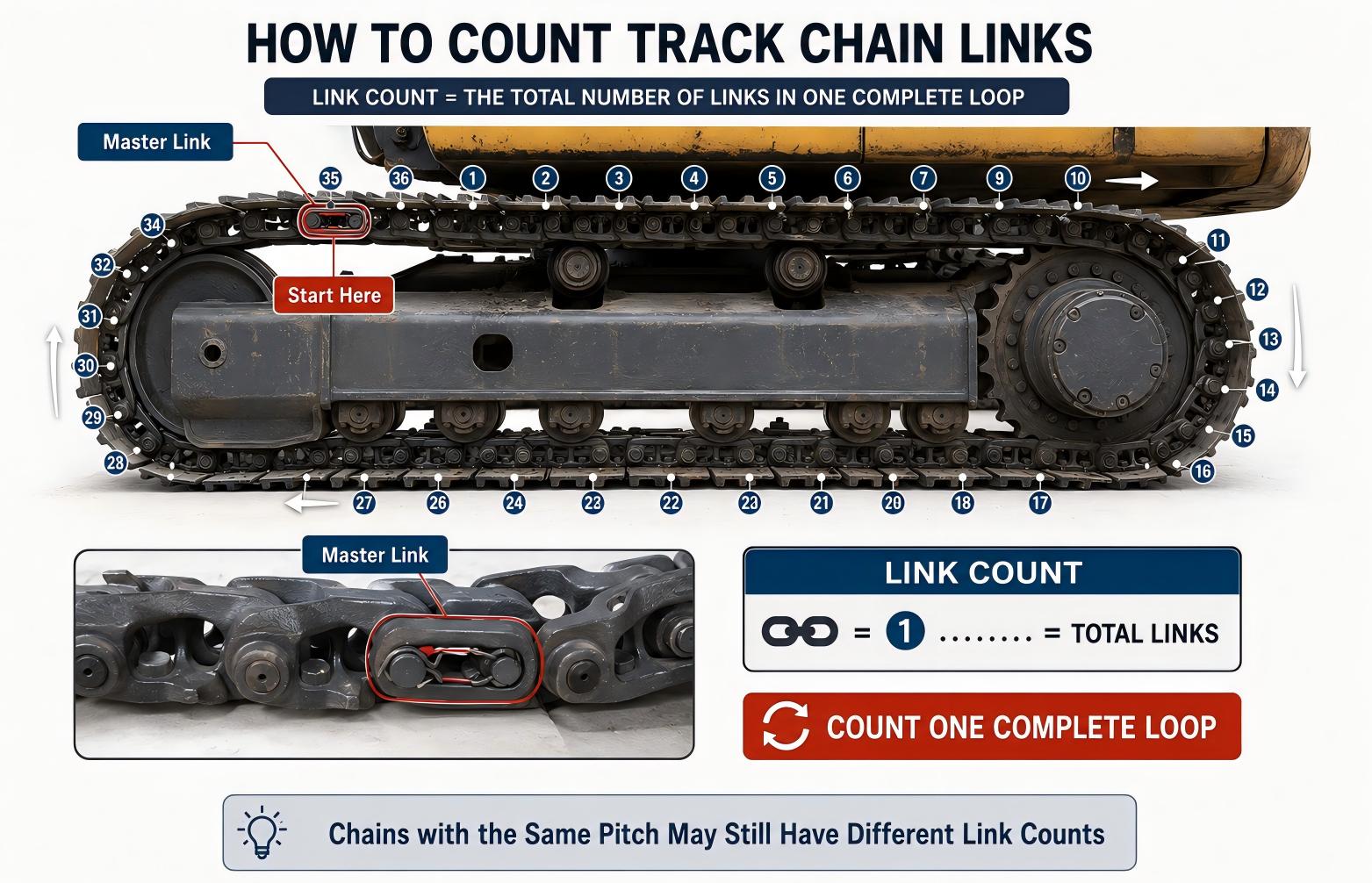

The track chain link count is the number of links in a complete track chain.
Two chains can have the same pitch but different link counts, which changes the total chain length.
For better identification, confirm:
Machine Model + Track Pitch + Link Count + Part Number
To avoid mistakes, mark the starting point and count one complete loop. If a master link is visible, it can be used as a convenient reference point.
In addition to pitch and link count, several other dimensions should be checked.
Link height refers to the overall vertical dimension of the track link.
Rail height is especially important because the rail surface runs directly on the track rollers. As the undercarriage wears, rail height gradually decreases.
Therefore, measurements from an old track link may not represent the original new-part specification.
Rail width affects roller contact, alignment, and load distribution.
Link width affects compatibility with the complete undercarriage structure.
The pin connects adjacent links and allows the chain to articulate.
Incorrect pin diameter may affect joint fit, strength, and assembly accuracy.
The bushing engages directly with the drive sprocket.
The track link bushing diameter must match the sprocket geometry correctly. Poor matching may cause abnormal tooth contact, bushing wear, and track jumping.
Bushing length also affects joint positioning and side clearance.
The track links must match the track shoes.
Important details include:
l Bolt hole diameter
l Hole spacing
l Number of bolt holes
l Mounting pattern
Matching track pitch does not automatically mean the track shoe mounting pattern is correct.
An incorrect bolt pattern can prevent installation or create uneven loading.

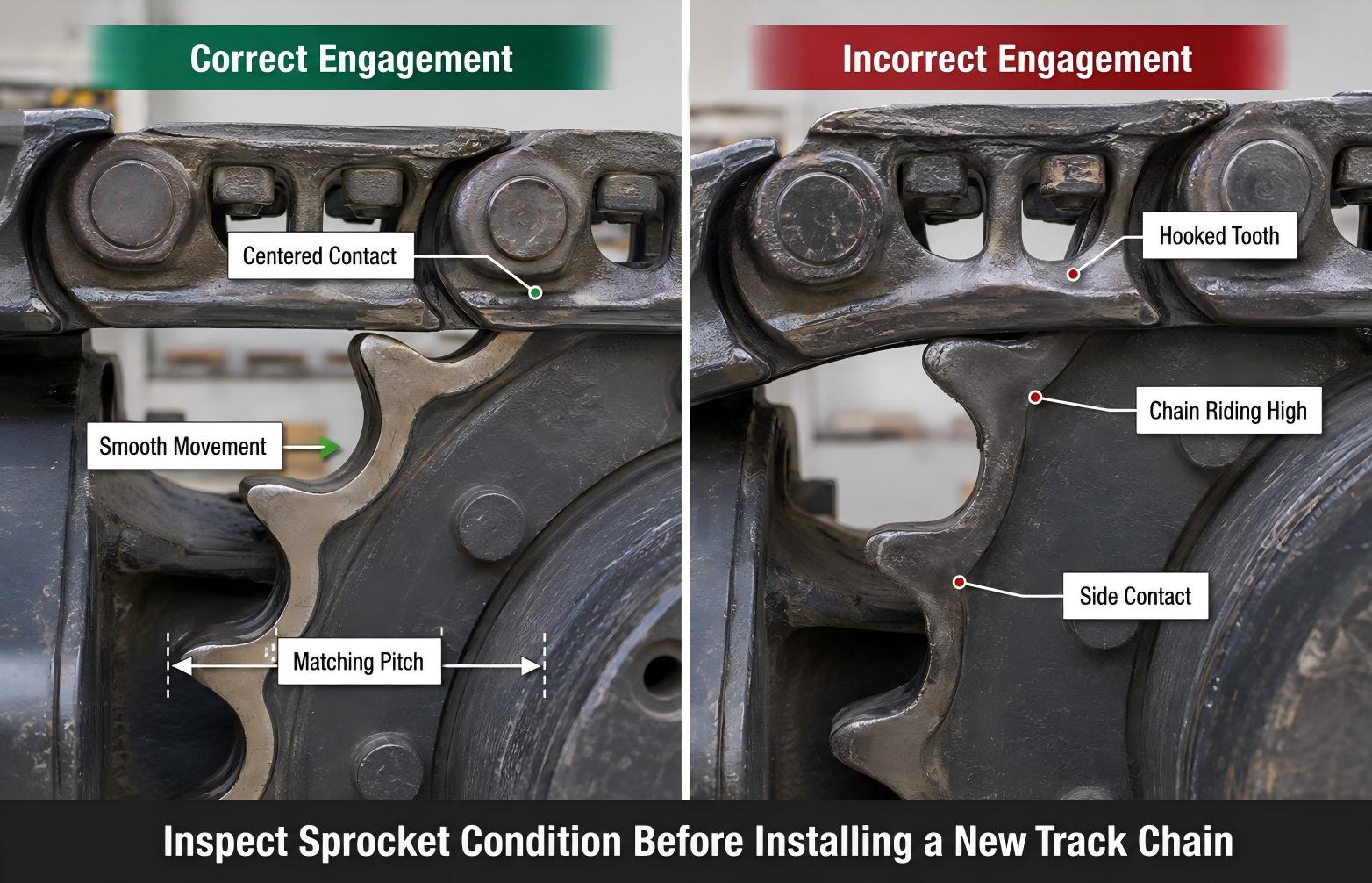

The track chain and drive sprocket work as a matching wear system.
Correct engagement should provide:
l Centered contact
l Smooth chain movement
l Even loading
l Stable tooth-to-bushing engagement
A worn sprocket may develop sharp or hooked teeth. Installing a new track chain on a severely worn sprocket can quickly damage new bushings.
Before replacing a track link assembly, inspect the sprocket condition as well.
A common mistake is assuming that dimensions measured from an old track link are identical to new-part specifications.
Wear may cause:
l Reduced rail height
l Rail side wear
l Pin wear
l Bushing wear
l Pitch elongation
l Enlarged bolt holes
Old-part measurements should therefore be combined with machine information and reference numbers rather than used alone.
The same excavator model may use different undercarriage configurations depending on:
l Serial number
l Production year
l Regional specification
l Track shoe option
l Undercarriage configuration
A more reliable inquiry includes:
Brand + Model + Serial Number + Part Number + Pitch + Link Count
This gives the supplier more information to confirm compatibility.
If the reference number is unavailable, provide:
l Machine brand and model
l Serial number
l Track pitch
l Link count
l Link height
l Rail width
l Pin diameter
l Bushing diameter
l Bushing length
l Bolt hole spacing
l Clear product photos
Useful photos include a full side view of the track chain, close-ups of the link, pin and bushing area, track shoe mounting area, and any visible identification marks.
Avoid these common errors:
l Measuring link edges instead of pin centers
l Measuring only one worn pitch
l Ignoring link count
l Measuring over mud or debris
l Forgetting bushing diameter
l Assuming similar-looking links are interchangeable
l Treating worn dimensions as original specifications
Before ordering an excavator track link or track chain, confirm:
l Machine brand and model
l Serial number
l Part number
l Track link pitch
l Track chain link count
l Link height
l Rail width
l Pin diameter
l Bushing diameter
l Bushing length
l Bolt hole pattern
l Sprocket compatibility
Choosing the correct excavator track link size requires more than one measurement. Buyers should verify the track link pitch, link count, critical dimensions, part number, machine information, and sprocket compatibility before ordering.
When the part number is unknown, accurate measurements and clear photos become especially important. Remember that worn components may no longer reflect their original dimensions.
Providing complete information to your track link supplier helps reduce incorrect orders, improve compatibility, and support longer excavator undercarriage service life.
