How To Choose The Right Excavator Drive Sprocket for Your Machine

Choosing the right excavator drive sprocket is essential for reliable undercarriage performance. Although two sprockets may look similar, differences in track pitch, tooth profile, mounting dimensions, and machine configuration can make them incompatible.

An incorrect sprocket may cause poor track chain engagement, accelerated wear, higher maintenance costs, and unexpected downtime. Whether you are an equipment owner, contractor, distributor, or importer, the following guide will help you select the correct excavator drive sprocket.

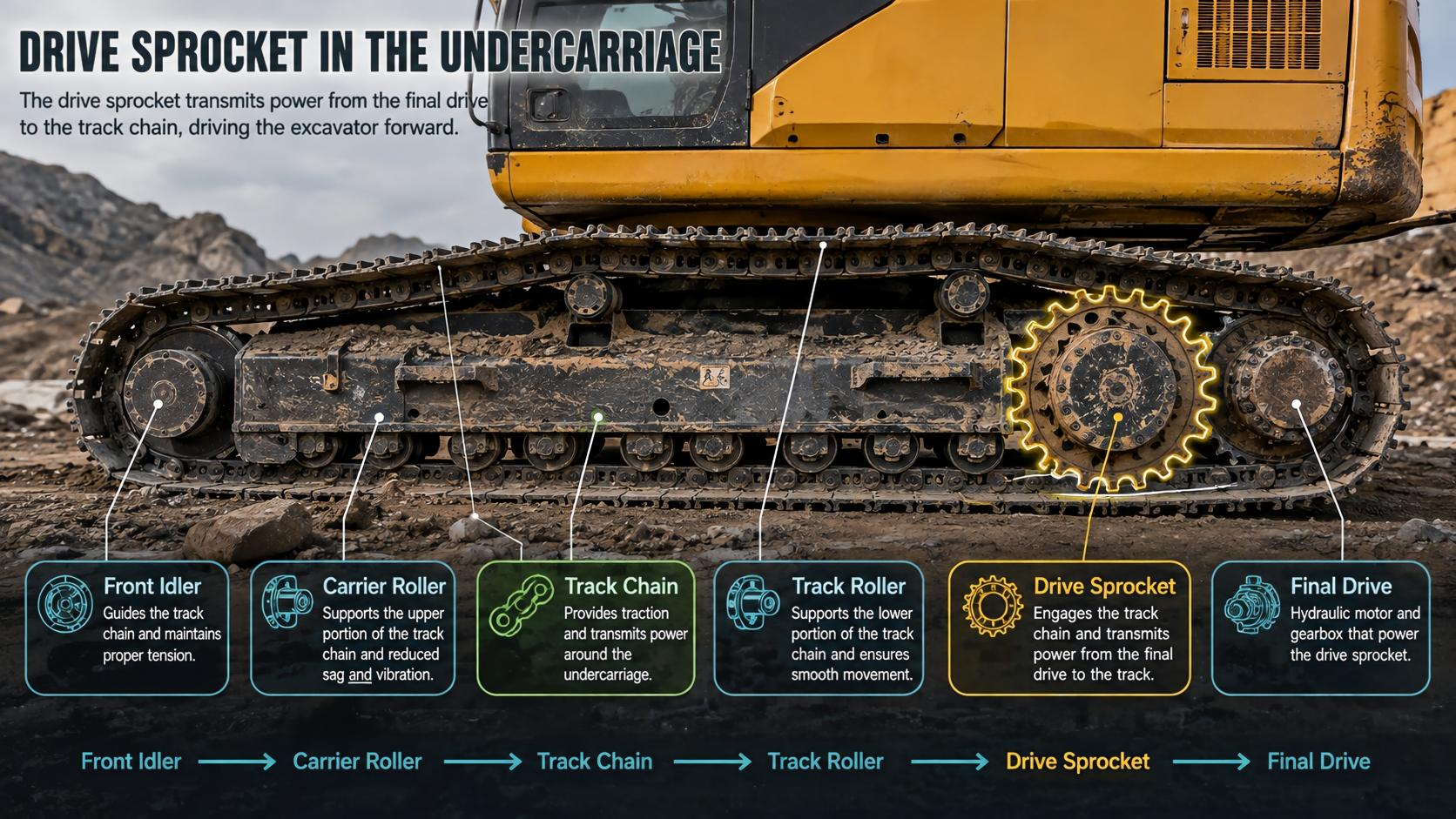

What Does an Excavator Drive Sprocket Do?

The drive sprocket is connected to the final drive and transfers rotational power to the track chain. As it rotates, the sprocket teeth engage with the track chain bushings and move the track around the idler and rollers.

Correct sprocket-to-chain matching helps provide smooth power transmission, stable machine travel, and more even undercarriage wear.

Because the sprocket and track chain work together continuously, they should be inspected as a complete wear system.

1. Confirm Machine Model and Serial Number

Always start with accurate machine information.

Provide your excavator drive sprocket supplier with:

• Machine brand

• Exact model

• Serial number

• Existing part number

• Photos of the original sprocket

Do not select a sprocket based only on excavator tonnage. Machines in a similar weight class may use different track pitches and mounting configurations.

Even the same model can have different undercarriage specifications depending on production series or serial-number range.

2. Verify the Part Number

The OEM or reference part number is one of the fastest ways to identify a replacement sprocket.

Check the original component, parts catalog, service documentation, or previous purchasing records.

However, the part number should still be cross-checked with the machine model and serial number. Part numbers can be superseded, and similar machines may use different sprocket configurations.

For B2B purchasing, Part Number + Machine Model + Serial Number provides a more reliable basis for verification.

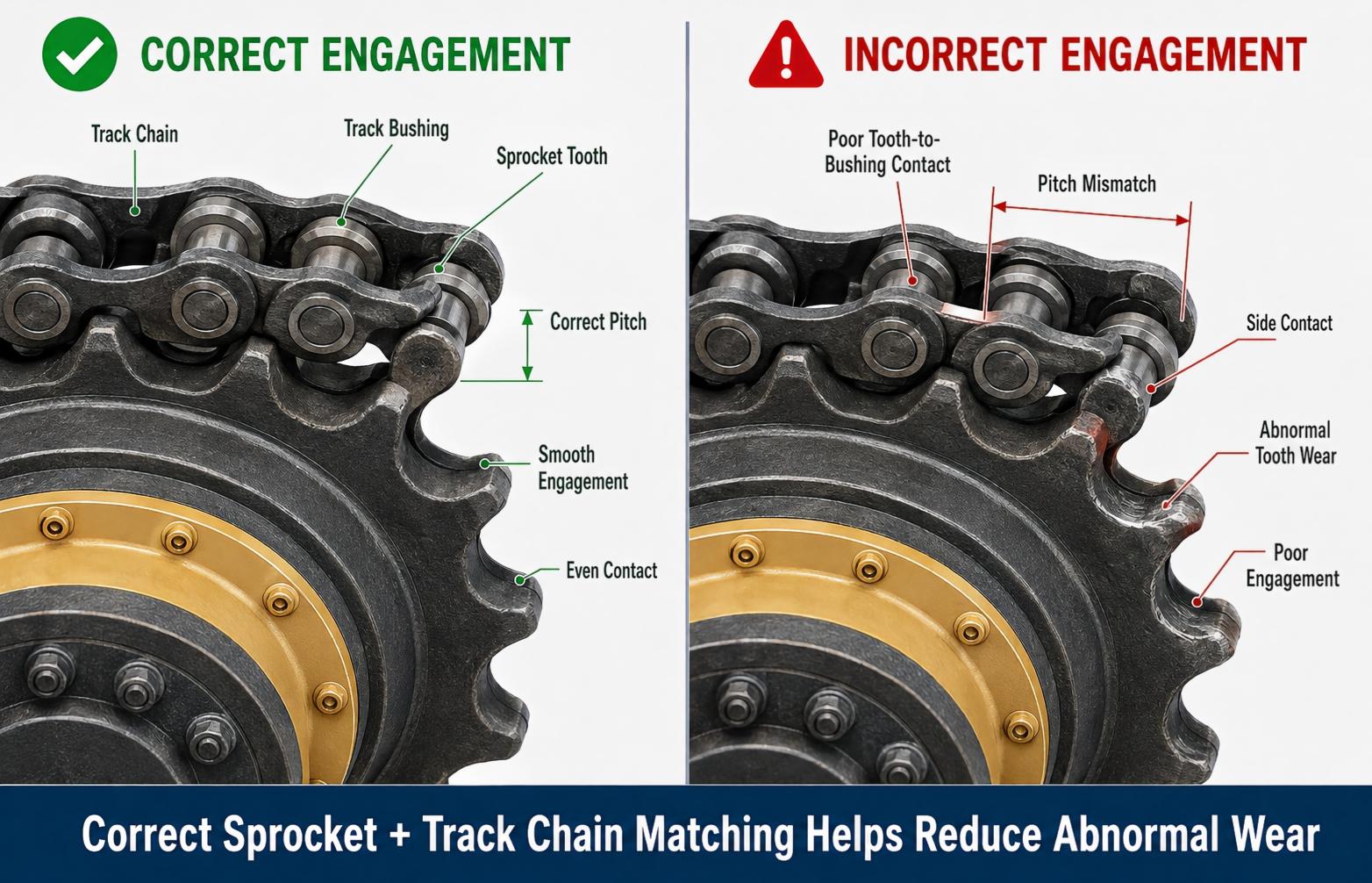

3. Match the Sprocket With the Track Chain

Correct engagement between the excavator drive sprocket and track chain is critical.

Check important specifications such as:

· Track chain pitch

· Sprocket tooth count

· Tooth profile

· Tooth width

· Track bushing dimensions

The sprocket teeth should engage smoothly with the corresponding chain bushings.

As pins, bushings, and sprocket teeth wear, their engagement relationship changes. Installing a new sprocket on a severely worn track chain can cause poor contact and accelerate wear.

Always inspect the chain before replacing the sprocket.

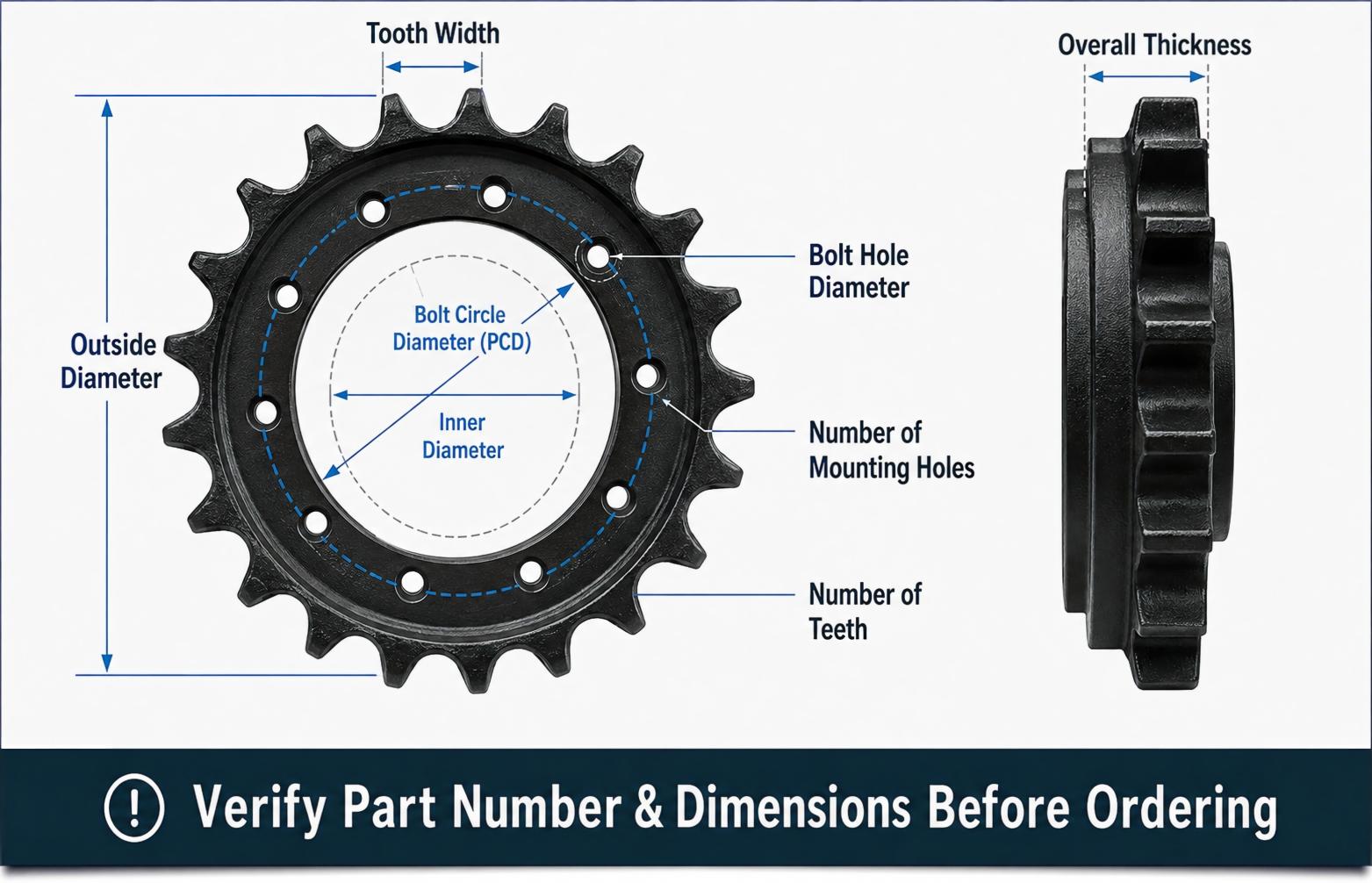

4. Check Critical Sprocket Dimensions

Similar appearance does not guarantee compatibility.

If the part number cannot be confirmed, measure the original sprocket carefully. Important excavator sprocket dimensions may include:

· Number of teeth

· Number of mounting holes

· Bolt hole diameter

· Bolt circle diameter

· Inner diameter

· Outside diameter

· Overall thickness

· Mounting offset

Send clear front, side, mounting-surface, and tooth-profile photos together with the measurements.

This is especially important for distributors and importers purchasing larger quantities.

5. Inspect the Complete Undercarriage

Replacing only the excavator drive sprocket without inspecting related components can shorten the life of the new part.

Check the track chain for worn pins and bushings, increased pitch, damaged links, uneven wear, and poor sprocket engagement.

Track tension should also be inspected. Excessive or insufficient tension can contribute to abnormal undercarriage wear.

If the chain is already heavily worn, replacing only the sprocket may not solve the underlying problem.

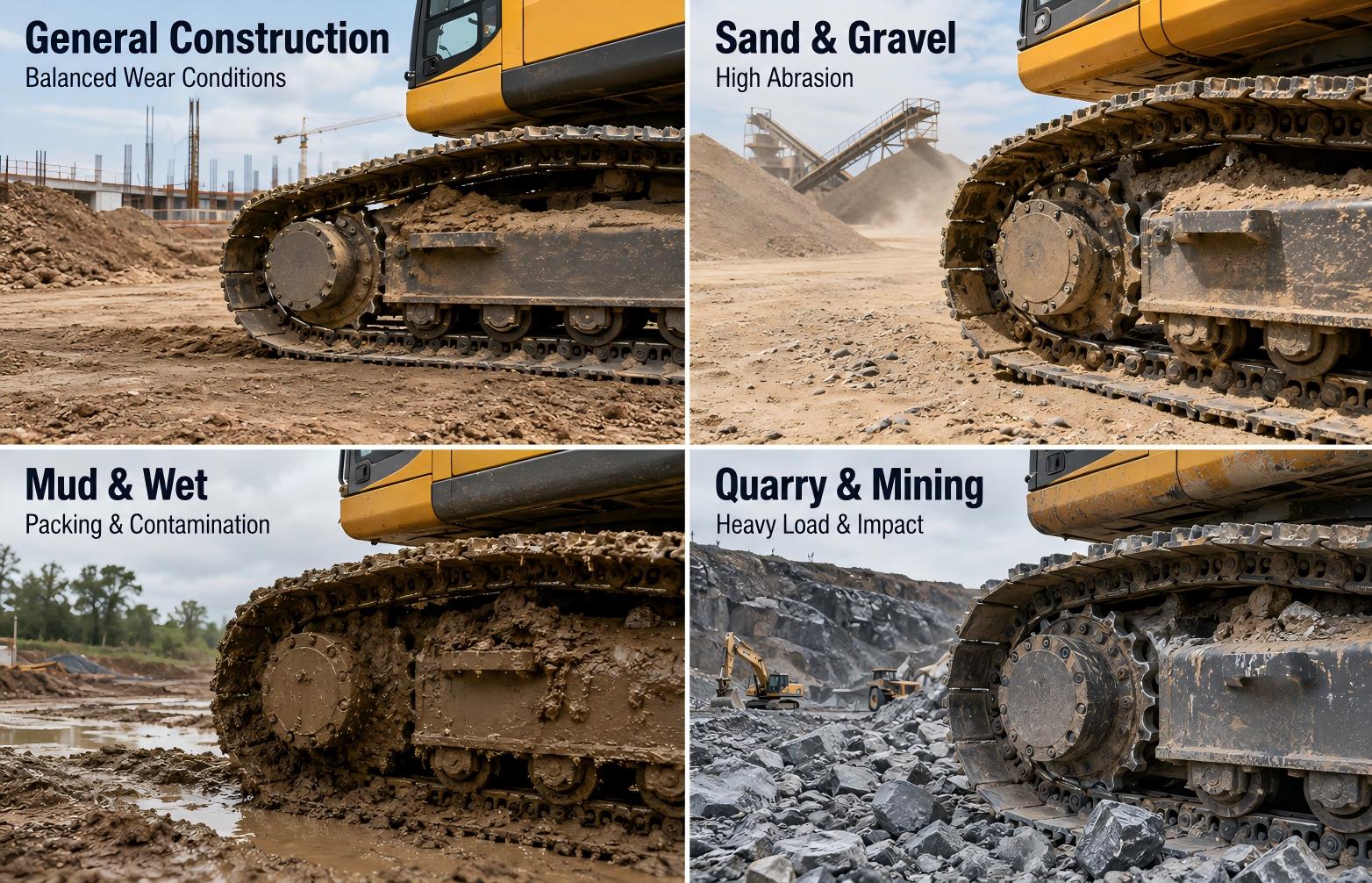

6.Consider the Working Environment

Operating conditions strongly influence sprocket wear.

General Construction: Requires balanced strength and wear resistance.

Sand & Gravel: Abrasive materials can accelerate tooth and bushing wear.

Quarry & Mining: Rock impact, heavy loads, and long operating hours demand greater durability.

Mud & Wet Conditions: Packed material can interfere with track movement and increase wear if the undercarriage is not cleaned regularly.

Tell your supplier about the actual application when requesting a quotation.

7. Evaluate Material and Heat Treatment

A quality excavator drive sprocket requires both wear resistance and toughness.

Important manufacturing factors include:

· Steel quality

· Casting or forging quality

· Machining accuracy

· Tooth profile consistency

· Heat treatment control

· Surface hardness

· Dimensional inspection

· Crack inspection

Hardness alone does not determine sprocket quality. Material selection, heat treatment, machining accuracy, and inspection must work together to provide reliable performance.

8. Recognize Excavator Sprocket Wear

Regular inspection can identify problems before serious undercarriage damage occurs.

Common excavator drive sprocket wear signs include:

· Sharp or hooked teeth

· Uneven tooth wear

· Chipped or cracked teeth

· Abnormal side wear

· Poor chain engagement

· Track jumping

· Unusual travel noise

These symptoms may also result from worn bushings, incorrect track tension, misalignment, or other undercarriage problems. Inspect the complete system before deciding which components need replacement.

9. Choose a Reliable Excavator Drive Sprocket Supplier

For international buyers, a professional supplier should do more than provide a price.

A practical compatibility check should follow:

Machine Model → Serial Number → Part Number → Track Pitch → Tooth Count → Mounting Dimensions → Application

Before bulk purchasing, ask about dimensional inspection, material, heat treatment, quality control, packaging, and compatibility verification.

Accurate verification can reduce incorrect orders, returns, and costly machine downtime.

What Information Should You Send for a Quote?

To receive a faster and more accurate quotation, prepare:

Machine Brand & Model + Serial Number + Part Number + Sprocket Photos + Tooth Count + Key Dimensions + Track Chain Information + Quantity

Providing complete information helps your supplier identify the correct excavator drive sprocket more efficiently.

Conclusion

Choosing the correct excavator drive sprocket requires more than matching product appearance. Buyers should verify the machine model, serial number, part number, track pitch, tooth profile, mounting dimensions, chain condition, and working  environment.

Correct sprocket-to-chain matching helps maintain smooth engagement, reduce abnormal wear, and control long-term undercarriage costs.

YASSIAN supplies excavator drive sprockets and undercarriage parts for different crawler equipment applications. Send us your machine model, serial number, part number, product photos, dimensions, and required quantity for compatibility verification and quotation.
