Choosing the right loader bucket size is not simply about buying the largest bucket that fits. An oversized attachment can reduce stability, increase spillage, slow cycle times and place unnecessary stress on the loader.
The correct bucket must match the loader, the material and the application. Buyers need to consider loader bucket capacity, dimensions, empty weight, material density and fill factor before making a decision. This guide explains how to evaluate these factors and choose a bucket that delivers safe, consistent productivity.
Loader bucket size usually refers to the physical dimensions of the attachment, including overall width, internal width, height, depth, bucket opening and mounting dimensions. Capacity refers to the volume of material the bucket can hold and is normally expressed in cubic metres or cubic yards.
Two buckets can have the same width but different capacities because their floor length, profile and side height differ. They may also be incompatible because of weight or mounting geometry.
Struck capacity is the volume contained when material is level with the bucket opening. Heaped capacity includes material piled above it according to a defined profile. Compare specifications only when they use the same measurement basis.
A correctly sized bucket enters material efficiently, fills consistently and retains the load. An oversized bucket may be difficult to fill, overload the machine and increase stress on the lift arms, tyres and drivetrain. A bucket that is too small requires more passes and reduces hourly production.
The best bucket is therefore not always the biggest. It is the one that delivers the most efficient repeatable load within the loader manufacturer’s operating and stability limits.
Before selecting wheel loader bucket capacity, check the machine specifications for:
l Rated payload or operating capacity
l Static and full-turn tipping load
l Lift capacity
l Maximum permitted attachment weight
l Standard or high-lift linkage
l Pin-on or quick-coupler connection
Do not choose a bucket only from engine power or machine operating weight. Bucket weight and load location both influence stability. A high-capacity attachment that moves the load farther forward can affect the machine differently from a standard bucket, even when both carry the same material weight.
Always follow the loader manufacturer’s approved attachment and load limits.

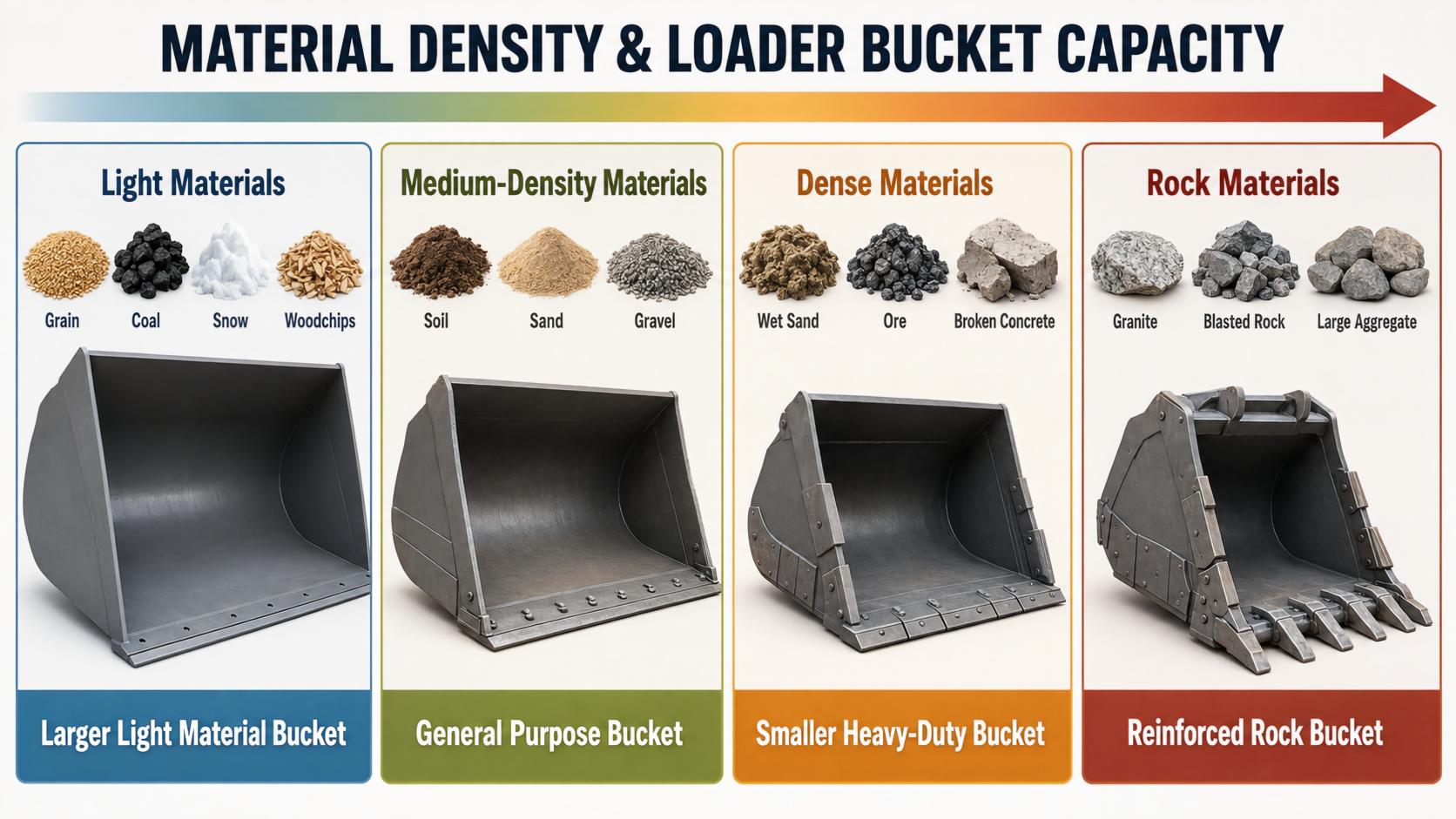

Bucket capacity measures volume, but the loader lifts weight. The same 3 m³ bucket may safely handle woodchips but become too heavy with wet sand, ore or broken concrete.
For this reason, material density is one of the most important selection factors:
· Light materials such as grain, coal, snow and woodchips can use a larger light-material bucket.
· Soil, sand and gravel usually suit a general purpose bucket with moderate capacity.
· Wet sand, ore and concrete require more conservative capacity because of their higher density.
· Blasted rock generally needs a smaller, reinforced rock bucket designed for penetration and impact.
Wet material may be considerably heavier than dry material. Size the bucket for the heaviest condition expected during normal operation.
Rated volume does not guarantee the same load in every pass. Bucket fill factor describes how much material is actually retained compared with rated capacity.
Fill factor is influenced by:
Material particle size and shape
Moisture and stickiness
Stockpile condition
Bucket profile
Teeth or cutting-edge configuration
Operator technique
Loose material may fill easily, while sticky clay or oversized rock may produce an incomplete load. Use a realistic fill factor instead of assuming a perfect fill every cycle.
A practical preliminary calculation is:
Estimated payload = Rated bucket capacity × Fill factor × Material density
For example, consider a bucket with:
· Rated capacity: 3.0 m³
· Material density: 1.6 t/m³
· Estimated fill factor: 105%, or 1.05
The estimated material payload is:
3.0 × 1.6 × 1.05 = 5.04 tonnes
This result must then be checked against the loader’s permitted working load. The weight of the bucket, quick coupler and other attachments must also be included when evaluating the total load carried by the machine.
This formula is useful for initial selection, but final approval should follow the loader manufacturer’s specifications and application guidance.

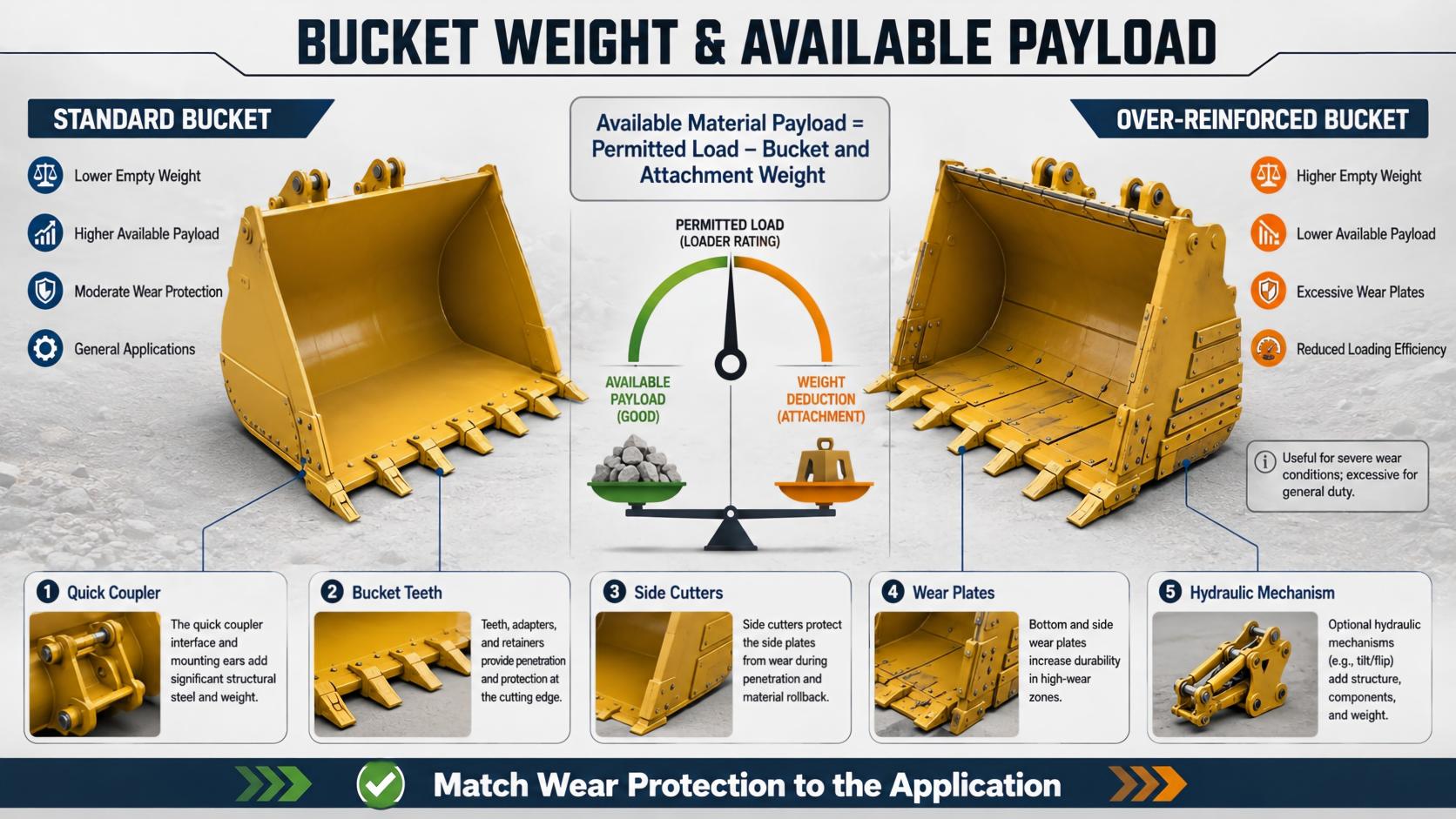

The empty loader bucket weight reduces the amount of material the machine can safely carry. Rock buckets, high-abrasion buckets and heavy-duty buckets often include thicker plates, larger teeth, side cutters and additional wear protection. These features improve durability but also add weight.
Extra reinforcement is valuable in severe applications, but too much reduces usable payload. Efficient designs place replaceable parts in high-wear areas. Include the weight of a quick coupler or hydraulic mechanism in the calculation.
The correct loader bucket width should suit the machine and working area. It often needs to cover the outside of the tyres for effective cleaning and grading. An excessively wide bucket adds weight and resistance, reduces penetration and is harder to control in confined areas.

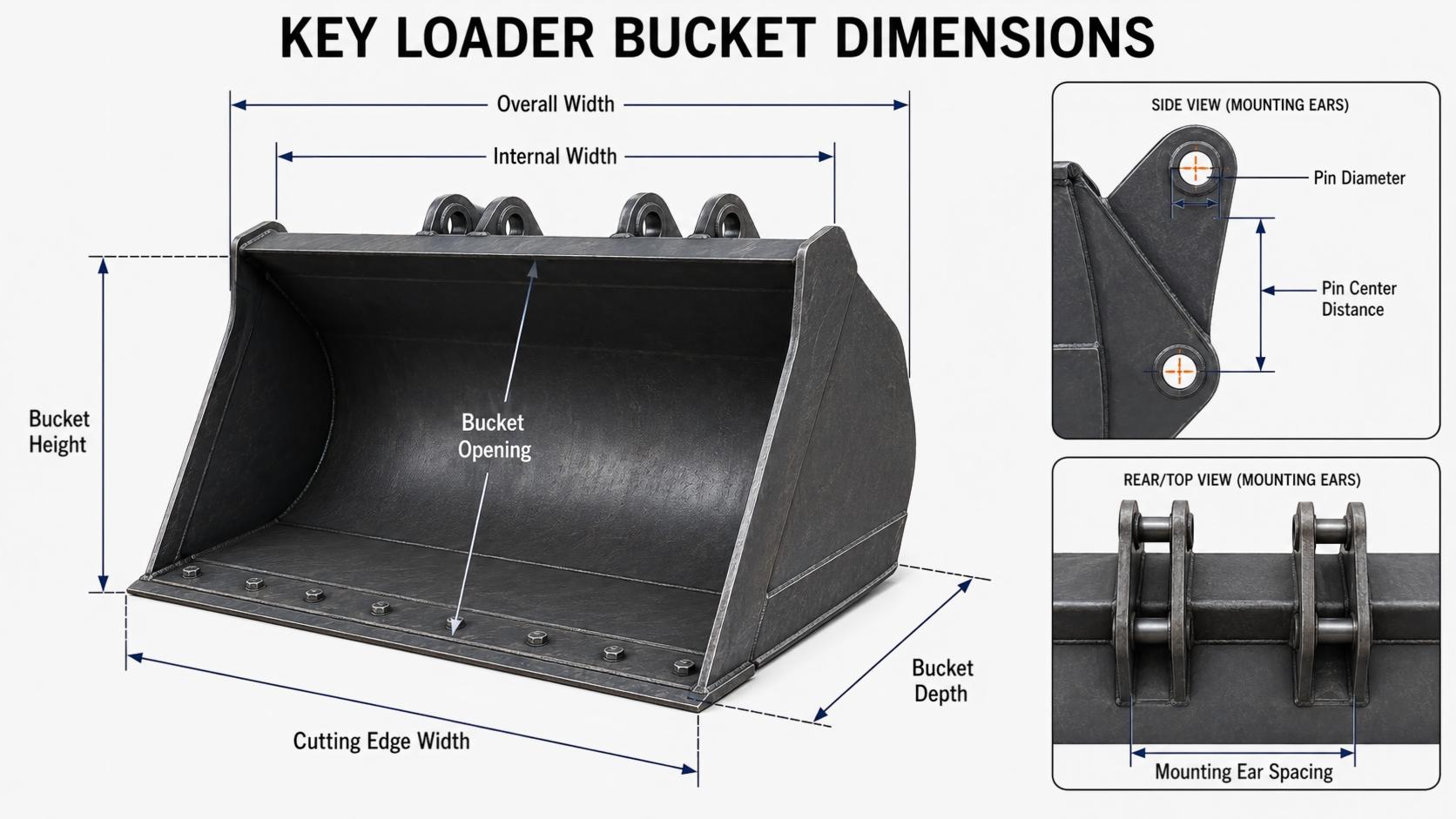

When reviewing loader bucket dimensions, confirm:
· Overall and internal width
· Bucket height and depth
· Cutting-edge width and thickness
· Pin diameter
· Pin-centre distance
· Inside mounting-ear spacing
· Linkage or quick-coupler type
Never assume that buckets with similar capacity and width will fit the same loader.
Bucket design changes usable capacity. A general purpose bucket balances volume and weight. A rock bucket sacrifices capacity for strength and wear protection. A light-material bucket provides more volume for low-density products, while a high-dump bucket increases discharge height but adds weight.
This is why a universal loader bucket size chart can only provide general guidance. Final sizing must account for the exact loader model, bucket type, material and working cycle.
Avoid these common errors:
1. Selecting the largest available capacity without calculating payload.
2. Ignoring material density, moisture or fill factor.
3. Forgetting the weight of the bucket and quick coupler.
4. Ordering by bucket width without checking mounting dimensions.
5. Using a light-material bucket for dense or abrasive material.
6. Adding excessive wear protection to a moderate-duty application.
7. Failing to match bucket capacity with truck or hopper size.
Poor filling, extra loading passes, rapid wear and downtime can make an incorrectly sized bucket far more expensive than its purchase price suggests.
To help a loader bucket manufacturer recommend the correct configuration, provide the loader brand and model, required capacity and width, material type and density, operating environment, coupler or linkage information and mounting dimensions.
Also specify whether the bucket requires teeth, a smooth cutting edge, side cutters or additional wear plates. Photos and drawings of the existing attachment can help confirm compatibility.
Understanding how to size a loader bucket requires more than comparing capacity figures. The correct decision combines loader limits, material density, fill factor, attachment weight, bucket width, mounting compatibility and application requirements.
A larger bucket is productive only when the loader can fill, lift, carry and dump it safely and consistently. By selecting a bucket around real payload and working conditions, operators can improve cycle times, protect the machine and reduce long-term operating costs.
