Mining Bucket Operation Instructions

Analysis of Bucket Cracks and Damage:

1. Long-term continuous operation: During use, the surface condition of castings, welds, and plates was not inspected, and problems were not addressed promptly. It is recommended to conduct a visual inspection every 4/8 hours.

2. Wear of bucket teeth, wear blocks, and side teeth: Continued use after severe wear and shortening of castings shifts the stress point upwards, directly wearing down the cutter plates and tooth holders. It is recommended to replace severely worn parts promptly.

3. Repeated friction of ore inside the bucket exacerbates wear on the bottom plate, side plates, and welds. When welds become too thin, cracks appear, and cannot be repaired by welding again; only plate replacement repair is possible.

Precautions:

1. Before operation, check that the bucket connections are properly installed, that bucket teeth, side teeth, and other parts are not missing, and that all accessories are undamaged. Operation with missing parts is strictly prohibited.

2. It is strictly forbidden to impact the bucket side or bucket ears with mountains, rocks, or vehicles. 1. Do not use the bucket for lifting, prying, or compaction operations;

3. Do not overload the bucket or forcefully excavate large hard rocks. Do not use the bucket teeth as an impact hammer to repeatedly strike hard objects, as this can cause weld cracking and plate deformation;

4. Maintain vertical force on the bucket teeth during excavation, avoiding unilateral or oblique loading to prevent bucket body twisting and uneven wear of the ear plates;

5. When excavating ore, use layered and gradual excavation methods. Do not excavate too much at once to reduce the impact load on the bucket body;

6. When unloading material, gently place the pile to avoid slamming it from a height, thus reducing impact wear on wear-resistant plates, blades, and bucket teeth;

7. During long-term continuous operation, pause briefly every 4 hours for inspection. Increase the inspection frequency appropriately in high-temperature and dusty environments;

8. Before changing operating conditions or moving sites, thoroughly inspect the appearance, welds, and fasteners. Only resume operation after confirming everything is correct;

9. Inspection of vulnerable parts: Bucket teeth, tooth holders, and side guards: Inspect for wear, chipping, and loosening. Replace any parts with excessive wear, cracks, or loosening. For loose or excessively loose bucket teeth, adjust promptly. For pins and bushings: check for flexible rotation; if significant looseness or abnormal noise is observed, immediately stop the machine for repair. Tighten all bolts and fasteners thoroughly, and retighten any loose bolts to the specified torque.

10. Clean accumulated material and embedded stones from inside the bucket to prevent long-term pressure from hard objects causing localized deformation.

11. Monthly/every 500 working hours require a visual re-inspection of key welds and cover parts of the bucket body; promptly repair worn welds and reinforce worn cover parts. Disassemble and inspect pins and bushings for wear; replace entire sets if clearance exceeds the standard; thoroughly clean dust and rust from the bucket body surface, repair scratches and exposed bottom areas, and apply anti-corrosion treatment.

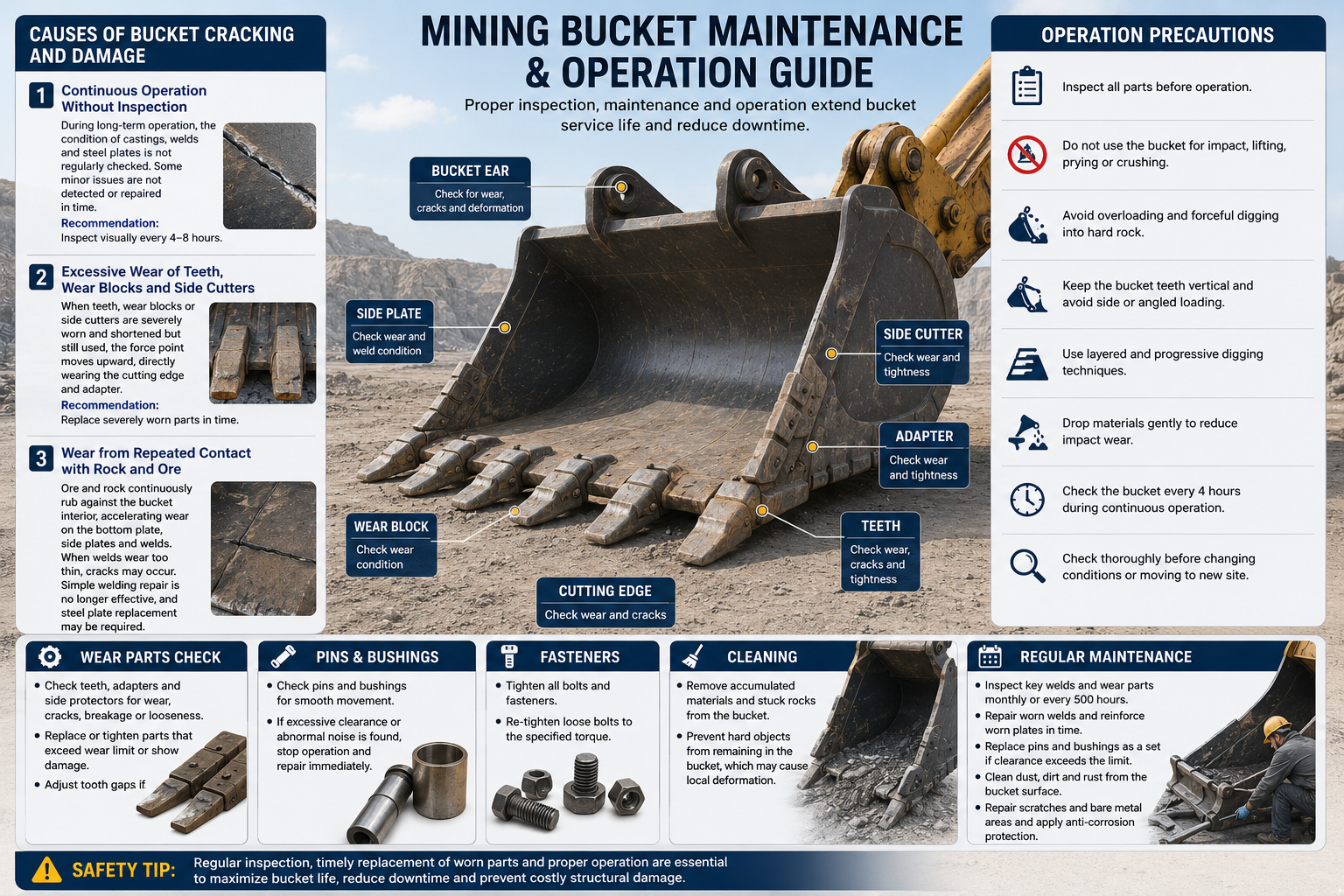

Mining Bucket Maintenance & Operating Instructions

Causes of Bucket Cracking and Damage

1. Continuous Operation Without Inspection
During long periods of operation, the condition of castings, welds, and steel plates is not inspected regularly. Minor problems are not detected and repaired in time.
Recommendation: Perform a visual inspection every 4–8 hours.

2. Excessive Wear of Teeth, Wear Blocks, and Side Cutters
When bucket teeth, wear blocks, or side cutters become severely worn and shortened but continue to be used, the load point shifts upward, causing direct wear on the cutting edge and tooth adapters.
Recommendation: Replace heavily worn parts promptly.

3. Abrasive Wear from Repeated Contact with Rock and Ore
Ore and rock constantly rubbing inside the bucket accelerate wear on the bottom plate, side plates, and weld areas. When weld sections become too thin, cracks may develop. In such cases, simple welding repairs are no longer effective, and plate replacement may be required.

Operating Precautions

Before Operation

1. Ensure all bucket connection points are correctly installed and secured.

2. Check that bucket teeth, side cutters, and other components are present and undamaged.

3. Never operate the bucket with missing or damaged parts.

During Operation

1. Do not use the bucket sides or ears to strike rock faces, boulders, vehicles, or other objects.

2. Do not use the bucket for lifting, prying, or crushing operations.

3. Avoid overloading the bucket or forcing it into large, hard rock formations.

4. Never use bucket teeth as an impact hammer to repeatedly strike hard materials.

5. Keep the bucket teeth aligned vertically with the digging force to prevent uneven loading.

6. Avoid side loading or angled digging that may twist the bucket body or cause uneven wear.

7. When excavating rock or ore, use a layered and gradual digging method.

8. Do not overload the bucket in a single digging cycle to reduce impact stress.

9. During dumping, place material gently and avoid dropping loads from excessive height.

10. This helps reduce impact wear on wear plates, cutting edges, and bucket teeth.

Regular Inspection

1. During continuous operation, stop every 4 hours for a quick inspection.

2. Increase inspection frequency when working in high-temperature or dusty environments.

3. Before changing working conditions or moving to a new site, inspect the bucket, welds, and fasteners thoroughly.

Wear Parts Inspection

1. Check bucket teeth, tooth adapters, and side protectors for wear, cracks, chipping, or looseness.

2. Replace or tighten any parts that exceed wear limits or show signs of damage.

3. Adjust excessive tooth clearance promptly.

4. Inspect pins and bushings to ensure smooth movement.

5. If excessive play or unusual noise is detected, stop operation immediately for maintenance.

6. Tighten all bolts and fasteners to the specified torque requirements.

Cleaning and Maintenance

1. Remove accumulated material and trapped rocks from the bucket regularly.

2. Prevent hard objects from remaining inside the bucket, as they may cause localized deformation.

3. Every month or every 500 operating hours, perform a detailed inspection of all critical welds and wear components.

4. Repair worn weld areas by welding before excessive thinning occurs.

5. Reinforce wear plates when they become excessively worn.

6. Inspect pins and bushings for wear and replace the complete set if clearance exceeds specifications.

7. Clean dust, dirt, and rust from the bucket surface regularly.

8. Repair scratches and exposed steel areas and apply anti-corrosion protection when necessary.

Safety Reminder

Regular inspection, timely replacement of worn parts, and correct operating practices are essential to maximize bucket service life, reduce downtime, and prevent costly structural damage.
