The excavator bucket is the primary point of contact between an excavator and the material being handled. Its design directly affects digging performance, bucket fill, fuel consumption, machine stability and wear costs. Although many excavator buckets appear similar, they are developed for very different materials and working conditions.
Using a general digging bucket in continuous rock excavation can lead to rapid wear and structural damage. On the other hand, installing an excessively heavy rock bucket for light soil work may reduce capacity, increase fuel consumption and place unnecessary stress on the machine.

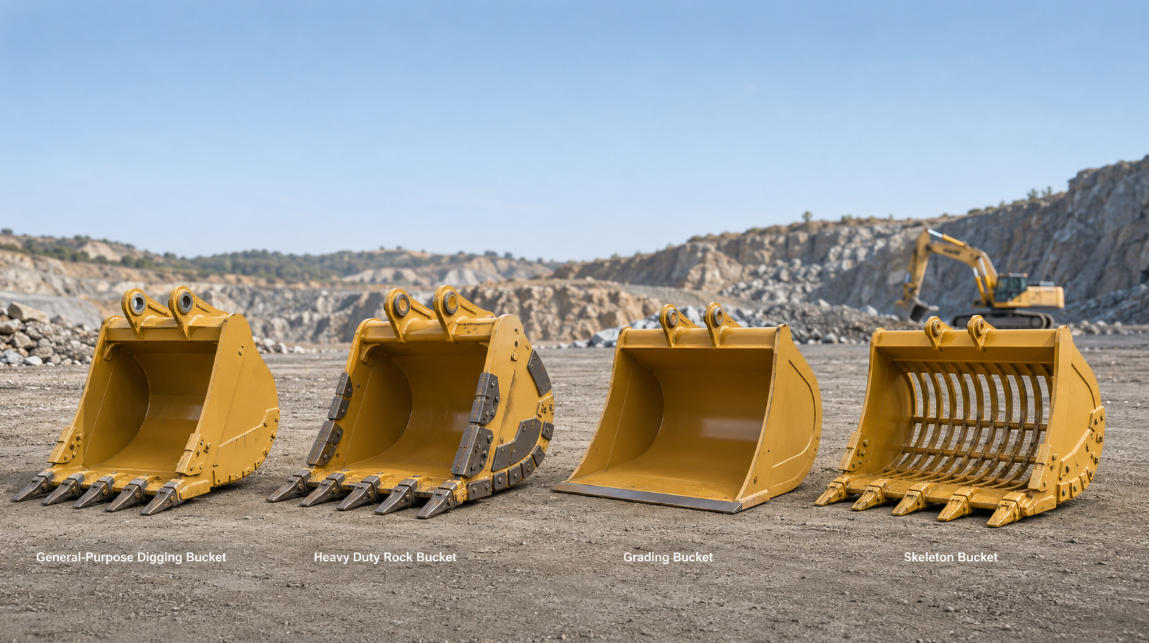

Understanding the different excavator bucket types helps contractors, equipment dealers and fleet owners choose the correct attachment for each application. This guide explains the most common types of excavator buckets, their uses and the key factors buyers should evaluate before ordering.

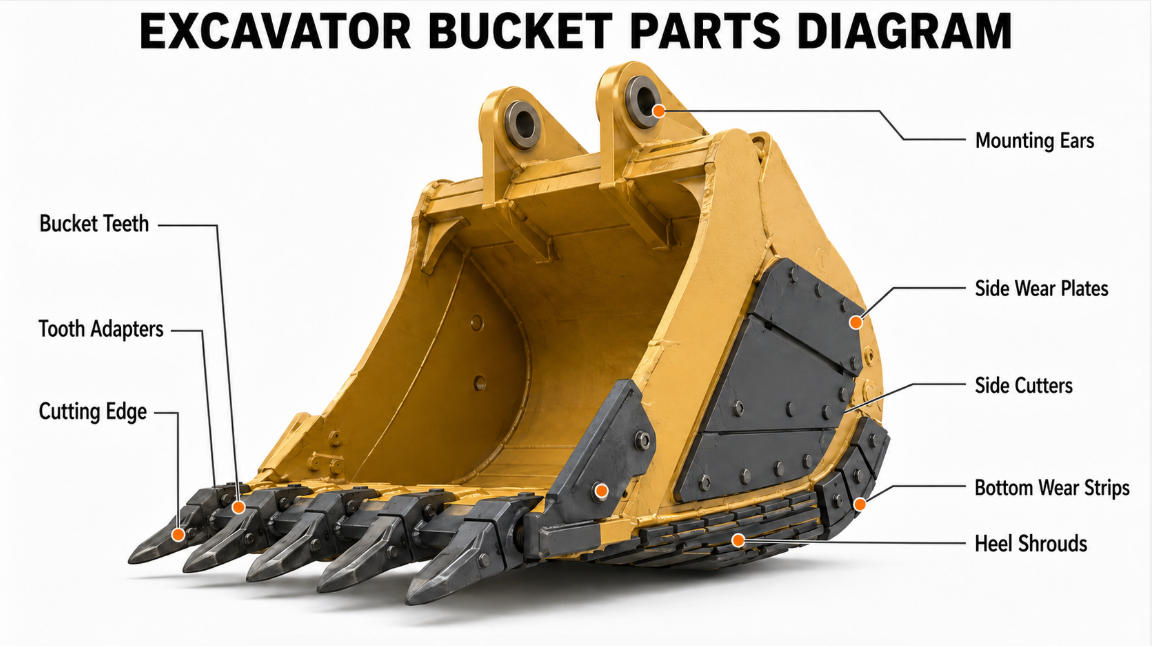

An excavator bucket is an attachment used for digging, loading, trenching, grading, sorting and handling materials. It connects to the excavator stick through a pin-on mounting system or quick coupler.
l Bucket shell
l Mounting ears
l Cutting edge
l Bucket teeth
l Tooth adapters
l Side cutters
l Side wear plates
l Bottom wear strips
l Heel shrouds
Not every bucket requires all these components. A grading bucket may have a smooth cutting edge without teeth, while a heavy duty excavator rock bucket may use teeth, side cutters and extensive wear protection.
Bucket design must therefore be matched to both the excavator and the application.
Different materials create different levels of digging resistance, impact and abrasion. Loose sand flows easily into a bucket, while compacted clay requires greater penetration force. Broken granite and sharp rock produce high impact loads and severe wear on the teeth, cutting edge, sides and bottom of the bucket.
Job requirements are also different. Trenching work needs a narrow bucket, grading requires a wide and smooth cutting edge, and material screening requires an open-grid structure.
l Digging force
l Bucket capacity
l Structural strength
l Wear resistance
l Attachment weight
l Material flow
l Finished digging profile
Selecting the correct type can increase productivity while reducing unnecessary fuel use and component wear.

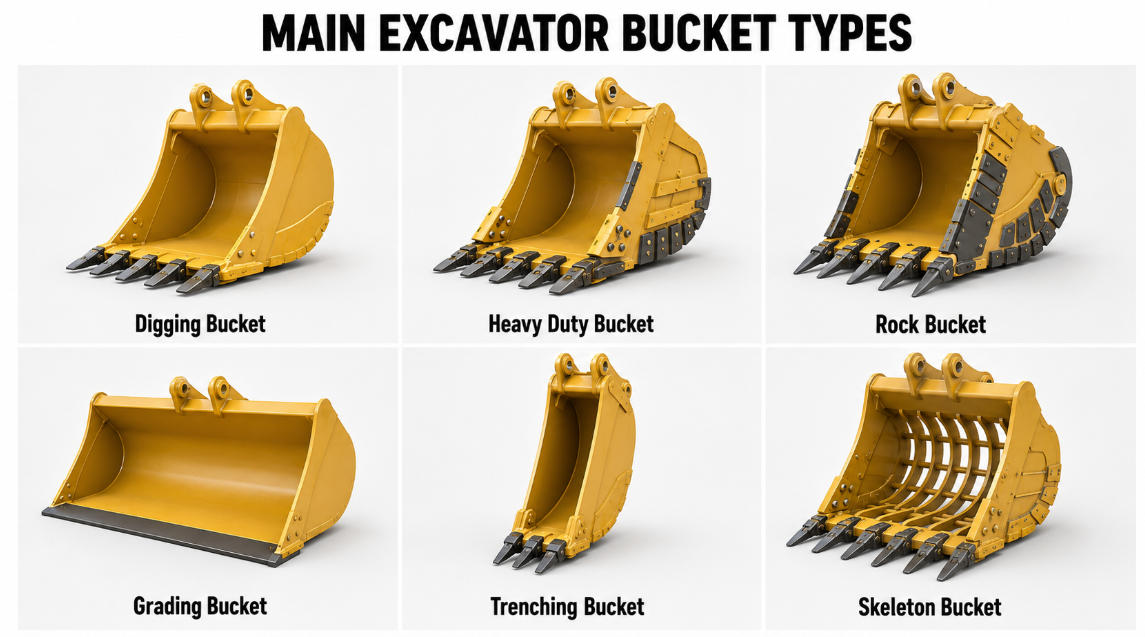

The general-purpose digging bucket is one of the most widely used excavator bucket types. It is designed for normal earthmoving and excavation in relatively low-impact materials.
l Soil
l Sand
l Loose clay
l Topsoil
l Fine gravel
A standard digging bucket usually offers a balanced combination of weight, width and capacity. It may be equipped with replaceable bucket teeth for improved penetration and easier maintenance.
General-purpose buckets are commonly used in foundation excavation, landscaping, site preparation and loading loose materials. However, they normally have less reinforcement than heavy-duty or rock buckets and should not be used continuously in highly abrasive rock.
A heavy duty excavator bucket is designed for more demanding construction environments. It generally has thicker structural plates, a reinforced cutting edge and additional protection in high-wear areas.
l Compacted soil
l Hard clay
l Gravel
l Mixed soil and stone
l Moderately abrasive materials
Heavy-duty buckets are often used in road construction, infrastructure projects, quarry loading and general heavy excavation. They provide greater durability than standard digging buckets while maintaining a reasonable balance between bucket weight and capacity.
For contractors handling changing ground conditions, a heavy-duty bucket can be a versatile choice. However, continuous work in sharp, high-impact rock may require a dedicated rock or severe-duty design.
An excavator rock bucket is built for broken rock, quarry aggregates and other dense, abrasive materials. Compared with a general-purpose bucket, it normally includes a stronger lip, heavy-duty teeth and more extensive wear protection.
l Mining
l Quarrying
l Rock excavation
l Crushed-stone handling
l Heavy road construction
l Demolition material handling
A rock bucket may feature side cutters, side wear plates, bottom wear strips and heel shrouds. These replaceable wear components help protect the main bucket shell from direct contact with sharp material.
The tooth system is especially important. The correct rock teeth and adapters can improve penetration while reducing stress on the bucket and excavator. Buyers should also confirm that replacement teeth, pins and retainers are readily available.
A severe duty bucket is developed for extreme impact and abrasion. It may be used for granite, basalt, ore, demolition debris and other materials that can rapidly damage a conventional bucket.
l Heavier structural reinforcement
l Thicker wear plates
l Stronger cutting-edge protection
l Increased side and heel protection
l Heavy-duty teeth and adapters
The additional protection can extend service life, but it also increases bucket weight. A heavier bucket may reduce the amount of material the excavator can safely lift.
The strongest bucket is not automatically the most productive choice. The excavator’s hydraulic performance, lifting capacity and stability must be considered before selecting a severe-duty configuration.
A grading bucket is wider than a typical digging bucket and usually has a smooth cutting edge without teeth. It is designed to create level surfaces and spread loose materials efficiently.
l Surface grading
l Backfilling
l Slope finishing
l Landscaping
l Site cleanup
l Loose-material handling
Its wide profile covers a larger area during each pass, helping operators produce a smoother finish. Grading buckets are not normally intended for aggressive digging in compacted rock.
Some models include drainage holes to release water and reduce the amount of wet material retained inside the bucket.
A ditch cleaning bucket is designed for cleaning drainage channels, waterways and ditches. It often has a wide opening and relatively large capacity for handling loose soil, sediment and wet materials.
l Shaping slopes
l Canal maintenance
l Removing mud
l Backfilling
l Landscaping
Because wet material can be much heavier than dry soil, buyers should calculate the expected loaded weight rather than selecting a bucket based only on its volume.
A trenching bucket has a narrow and deep profile. It is used to create trenches with controlled widths for pipes, cables, drainage systems and other underground utilities.
l Pipeline installation
l Cable laying
l Irrigation systems
l Drainage construction
l Utility projects
The correct trenching bucket width depends on the pipe or cable dimensions, required working clearance and local construction specifications.
A bucket that is unnecessarily wide removes more material, increases backfilling requirements and reduces efficiency. A bucket that is too narrow may not provide sufficient space for safe installation.
A skeleton bucket, also known as a screening bucket or riddle bucket, uses spaced bars instead of a fully enclosed bottom. The openings allow smaller material to fall through while retaining larger pieces.
It is commonly used for:
l Separating rock from soil
l Demolition sorting
l Recycling
l Land clearing
l Agricultural stone removal
The spacing between the bars should be selected according to the required separation size. Structural strength is also important because retained rocks can produce significant impact and bending loads.
A V-bucket creates trenches with sloped sides. Its V-shaped profile can form both the bottom and side walls in fewer passes than a standard trenching bucket.
Typical applications include:
l Drainage channels
l Irrigation ditches
l Pipeline construction
l Roadside water management
V-buckets can reduce secondary shaping work and help produce a consistent trench profile. The required angle and dimensions should be confirmed before manufacturing.
A tilt bucket can rotate hydraulically to the left or right, allowing an operator to shape slopes and grade surfaces without repeatedly repositioning the excavator.
It is suitable for:
l Precision grading
l Landscaping
l Slope finishing
l Road maintenance
l Drainage work
Before purchasing a tilt bucket, the buyer must confirm hydraulic compatibility, coupler requirements and the additional attachment weight. Regular inspection of the hydraulic components and pivot system is also important.
A ripper bucket, sometimes called a frost bucket, combines a narrow bucket body with an aggressive tooth arrangement. Its concentrated digging force helps penetrate frozen ground, hardpan, dense clay and weathered rock.
It is useful when a standard digging bucket cannot penetrate the material efficiently. In some applications, it can also reduce the need to switch repeatedly between a separate ripper and a conventional bucket.
Understanding excavator bucket types is only the first step. Buyers must match the bucket to the machine, material and required task.
Confirm the material’s density, hardness, abrasiveness, moisture content and expected impact level. A bucket for loose soil requires a different structure from an excavator bucket for mining or quarry work.
Decide whether the bucket will mainly be used for digging, loading, trenching, grading, screening or rock handling. A multi-purpose design may be suitable for changing conditions, while continuous specialized work normally benefits from a dedicated bucket.
An oversized bucket can overload the hydraulic system, reduce machine stability and slow the working cycle. A bucket that is too small requires more cycles and may reduce hourly production.
Material density must always be considered. A large bucket that is suitable for loose soil may be too heavy when filled with rock or wet clay.
Excavator buckets are not universal. Before ordering, confirm:
l Excavator brand and model
l Pin diameter
l Pin-center distance
l Stick width
l Ear spacing
l Coupler type
l Required bucket width
Machine tonnage alone is not enough to guarantee compatibility.
The protection system should match the actual wear pattern. Side cutters protect the side plates, bottom wear strips protect the bucket floor, and heel shrouds protect the curved rear corners.
Excessive reinforcement adds unnecessary weight, so protection should be concentrated in high-contact areas.
Common mistakes include choosing only by excavator tonnage, ordering the largest available capacity and ignoring material density. Other problems occur when buyers fail to confirm mounting dimensions, use general-purpose buckets in continuous rock work or select incompatible tooth systems.
Comparing suppliers only by price may also create long-term costs. Material quality, welding, dimensional accuracy, replacement wear-part availability and technical support all affect the true value of an excavator bucket.

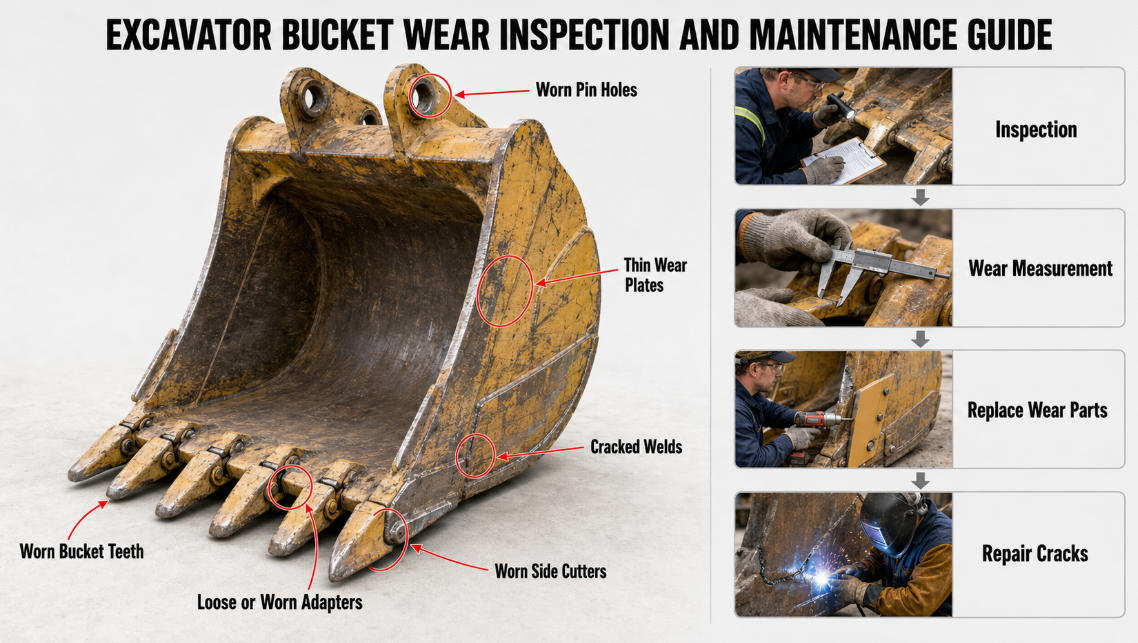

Regular maintenance helps prevent replaceable wear from reaching the main structure.
Operators should inspect:
l Bucket teeth and retainers
l Tooth adapters
l Side cutters
l Wear plates
l Cutting edges
l Welded joints
l Pin holes and mounting areas
Loose or missing teeth should be replaced promptly. Small cracks must be repaired before they spread, and worn protectors should be replaced before the bucket shell is exposed.
Monitoring wear patterns can also reveal incorrect tooth selection, poor bucket alignment or unsuitable operating techniques.
A professional excavator bucket manufacturer should confirm the machine dimensions, application and material conditions before recommending a design.
Equipment buyers should evaluate:
l Manufacturing experience
l Material control
l Welding capability
l Drawing confirmation
l Dimensional inspection
l Customization capability
l Wear-part availability
l Quality documentation
l Export packaging
l Delivery management
Providing accurate machine information, working conditions, drawings and reference photos helps the manufacturer produce a safer and more suitable bucket.
Different excavator bucket types are designed to solve different operating challenges. General-purpose digging buckets are suitable for normal soil work, while heavy-duty and rock buckets provide greater protection in demanding environments. Grading, trenching, skeleton, V-shaped and tilt buckets serve more specialized applications.
The correct choice should balance bucket capacity, attachment weight, digging performance, structural strength and wear resistance. Buyers must also confirm mounting dimensions, tooth systems and material conditions before production.
A properly selected excavator bucket can improve productivity, reduce fuel consumption and lower long-term maintenance costs—making it an important investment for contractors, equipment dealers and fleet operators.
