A carrier roller may be a relatively small part of a tracked machine, but choosing the wrong one can cause serious undercarriage problems. An incorrectly matched roller may lead to poor track alignment, abnormal wear, excessive vibration, oil leakage or even track derailment.
Carrier rollers that look similar are not necessarily interchangeable. Differences in roller diameter, tread width, flange position, mounting dimensions and bracket design can affect installation and performance. Whether you are maintaining one excavator or sourcing undercarriage parts for an entire fleet, selecting the correct carrier roller is essential for reducing downtime and controlling repair costs.

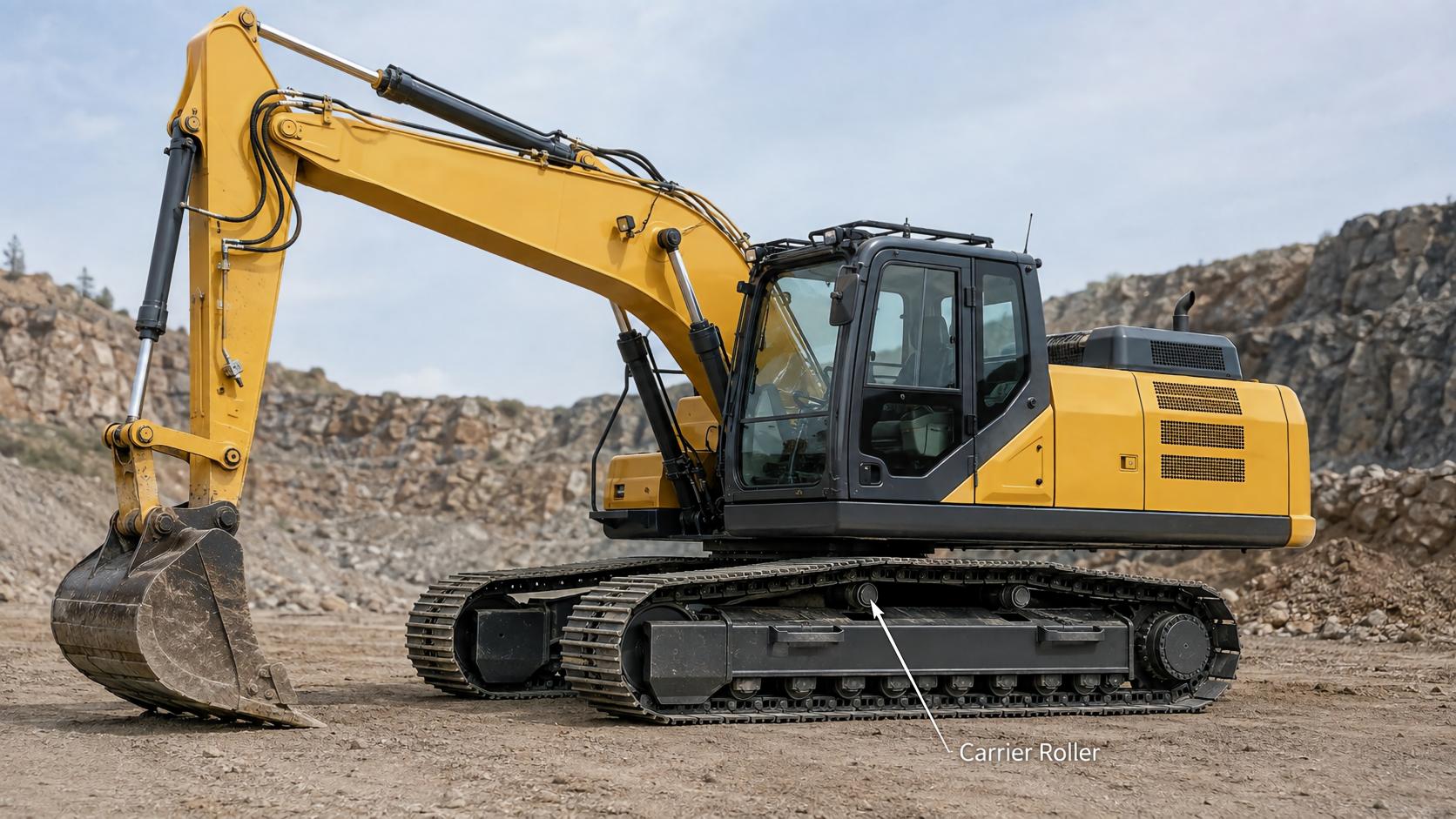

This guide explains how to choose the right excavator carrier roller or bulldozer carrier roller based on machine information, dimensions, working conditions and product quality.
A carrier roller is installed on the upper section of the track frame. It supports and guides the upper run of the track chain as it moves between the front idler and drive sprocket.
The main functions of an undercarriage carrier roller include:
l Supporting the upper track chain
l Preventing excessive track sag
l Maintaining track alignment
l Reducing friction between the track chain and track frame
l Helping the track move smoothly
l Reducing vibration and abnormal noise
A carrier roller is also commonly called a top roller or upper roller. These names usually refer to the same type of undercarriage component. However, buyers should never select a part based only on its name or appearance.

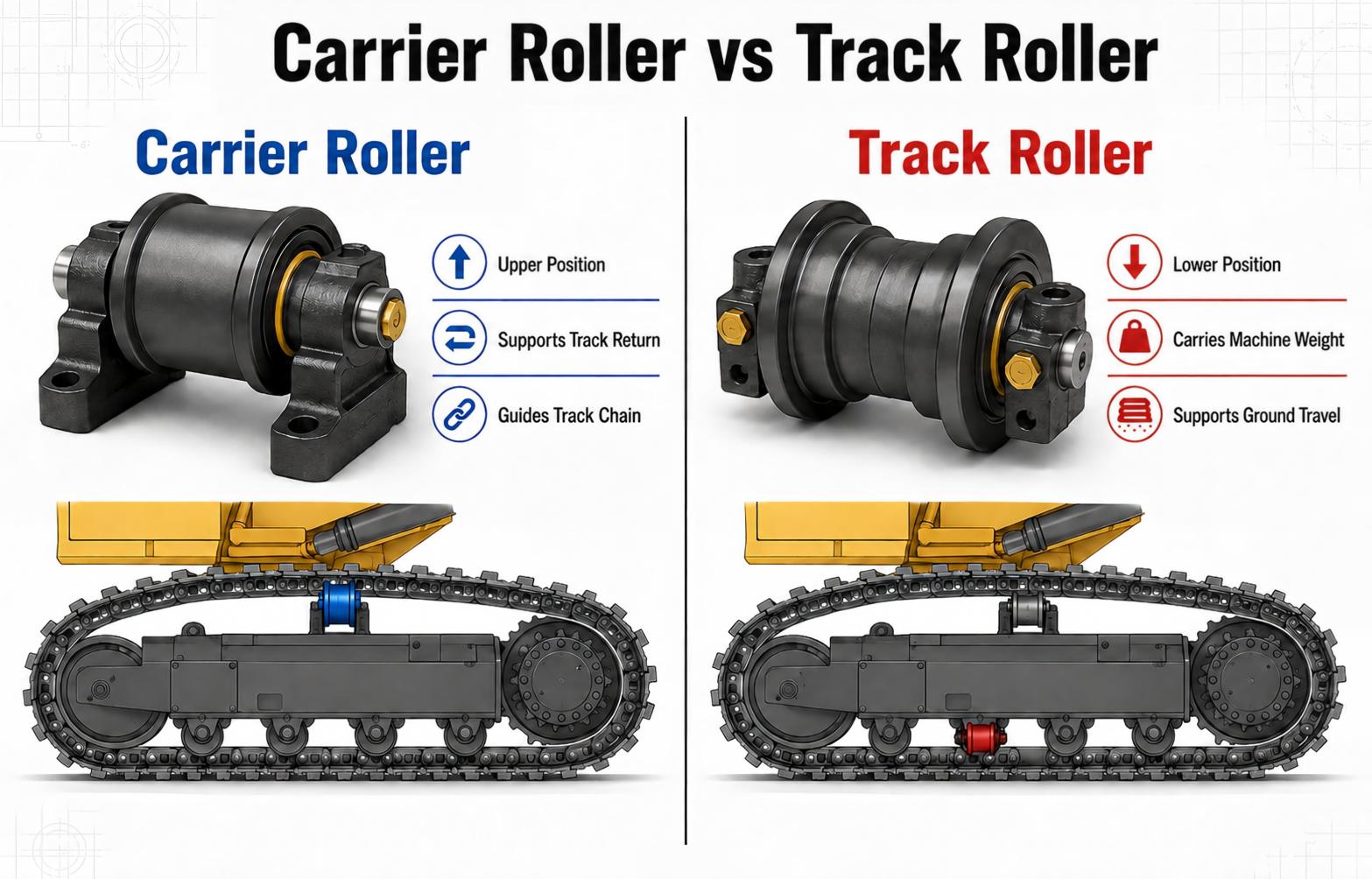

Carrier rollers and track rollers are both part of the tracked undercarriage, but they have different positions and functions.
A carrier roller is mounted above the track frame and supports the upper return section of the track chain. A track roller, also known as a bottom roller or lower roller, is installed underneath the track frame and carries the machine’s weight.
Because track rollers carry much heavier loads, their construction and load requirements differ from those of carrier rollers. Confusing these two components can result in an incorrect quotation or order. When requesting parts, clearly state whether you need a carrier roller, top roller or track roller.
An unsuitable carrier roller may still appear installable, but small dimensional differences can create long-term problems.
Possible consequences include:
l Mounting holes that do not align
l Incorrect contact between the roller and track link
l Excessive track chain sag
l Uneven wear on the roller tread or flange
l Track chain misalignment
l Contact between the chain and track frame
l Increased travel resistance
l Premature seal failure
l Damage to other undercarriage components
The correct carrier roller for excavator or bulldozer applications should match both the machine and its operating environment.
Start by identifying the complete machine information:
l Equipment brand
l Machine model
l Serial number
l Production series
l Machine type
l Approximate production year
The model name alone may not be enough. One excavator model can have several generations, and each generation may use different carrier roller dimensions or mounting structures.
For example, two machines from the same product family may have different brackets, hole spacing or shaft dimensions. Providing the serial number helps the supplier identify the exact machine configuration.
Avoid sending only general information such as “carrier roller for a 20-ton excavator.” Many machines belong to the same weight class but use completely different undercarriage systems.
The OEM or reference number is one of the most useful pieces of information for identifying a replacement carrier roller.
You may find the number through:
l The machine parts manual
l The equipment dealer’s system
l A label or marking on the old roller
l Maintenance records
l The machine model and serial number
Some part numbers are replaced or updated over time. One aftermarket carrier roller may also cross-reference several OEM numbers. Therefore, the number should be checked together with the machine model and critical dimensions.
If the original number is unavailable, send clear photos and measurements of the old carrier roller to the supplier.

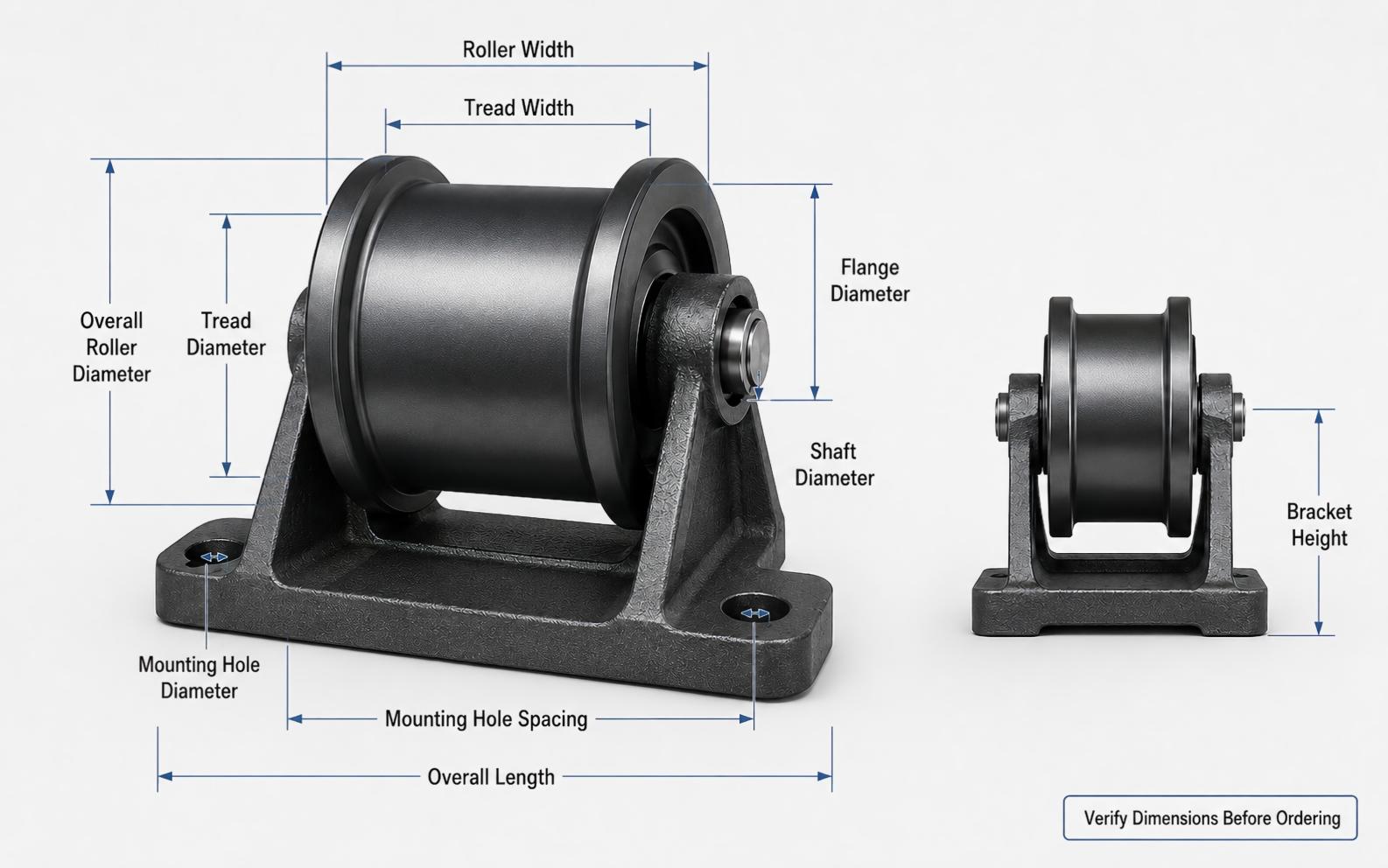

Measurements are especially important when the part number cannot be confirmed. The main dimensions may include:
l Overall roller diameter
l Tread diameter
l Roller width
l Tread width
l Flange diameter
l Flange position
l Shaft diameter
l Bracket height
l Mounting hole diameter
l Mounting hole spacing
l Overall length
Measure an area that has not been severely worn whenever possible. A damaged or heavily worn roller may no longer represent the original dimensions.
Photos should show the complete roller, mounting bracket, bolt holes and measuring tool. Combining photos with dimensions greatly improves matching accuracy.

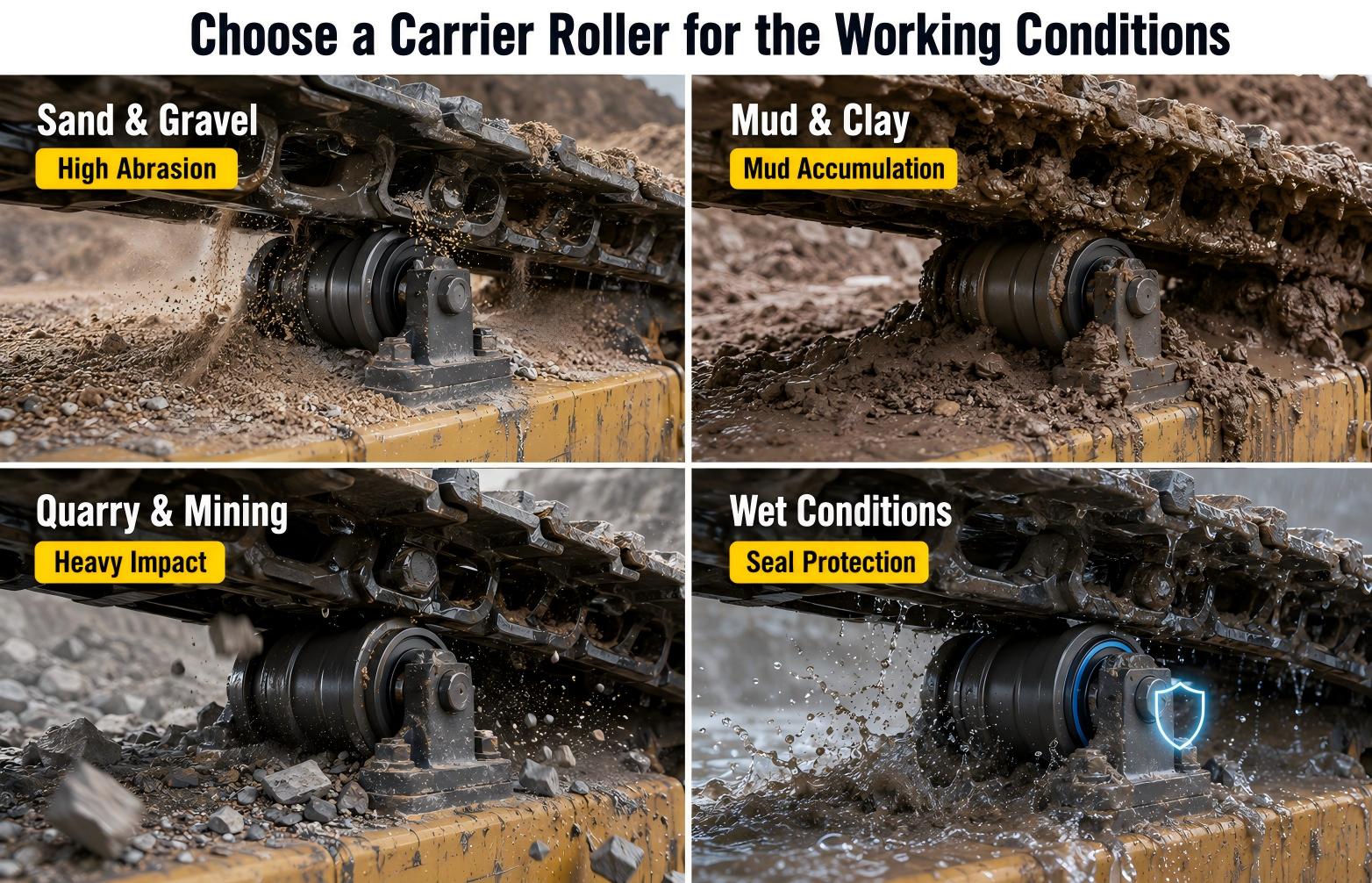

A carrier roller used in general construction does not face the same conditions as one operating in a quarry, mine or demolition site.
In sand and gravel, abrasive particles can accelerate tread and seal wear. Mud and clay can accumulate around the roller, restrict rotation and contaminate the sealing area. Quarry and mining applications introduce repeated vibration, impact and heavy operating loads.
When selecting a carrier roller, consider:
l Ground material
l Impact level
l Abrasion level
l Moisture and mud
l Daily operating hours
l Travel frequency
l Ambient temperature
l Machine load
For abrasive or high-impact applications, buyers should pay particular attention to material quality, heat treatment consistency, shaft strength and sealing performance.
The durability of an excavator carrier roller depends heavily on the quality of its roller body, shaft and internal components.
A properly manufactured roller should combine surface wear resistance with sufficient core toughness. Surface hardness helps resist wear, while core toughness reduces the risk of cracking under impact and vibration.
Higher hardness is not automatically better. If a roller is extremely hard but lacks toughness, the surface may crack or spall. Reliable manufacturers control the entire heat-treatment process to achieve a suitable balance between hardness, wear resistance and structural strength.
Buyers can ask the supplier for:
l Material information
l Heat-treatment specifications
l Hardness test results
l Dimensional inspection reports
l Quality certificates
l Product traceability information
The internal shaft and bushing or bearing system requires reliable lubrication. A damaged or low-quality seal allows lubricant to escape and lets water, mud and abrasive particles enter the roller.
Common signs of sealing failure include:
l Oil leakage around the shaft
l A roller that does not rotate freely
l Grinding or squeaking noises
l Excessive radial or axial movement
l Abnormal heat during operation
A quality carrier roller should have accurately machined sealing surfaces, dependable seals and the correct amount of lubricant. These details may not be obvious from the outside, which is why supplier quality control is important.
OEM carrier rollers provide established compatibility, but they are often more expensive and may have longer delivery times in some markets.
An aftermarket carrier roller can offer a more competitive price and wider availability. However, quality varies significantly among manufacturers. Buyers should verify the dimensions, materials, heat treatment, sealing system and inspection process instead of choosing only by price.
A reliable aftermarket product can be a cost-effective replacement when it is manufactured to the correct specifications and properly matched to the machine.

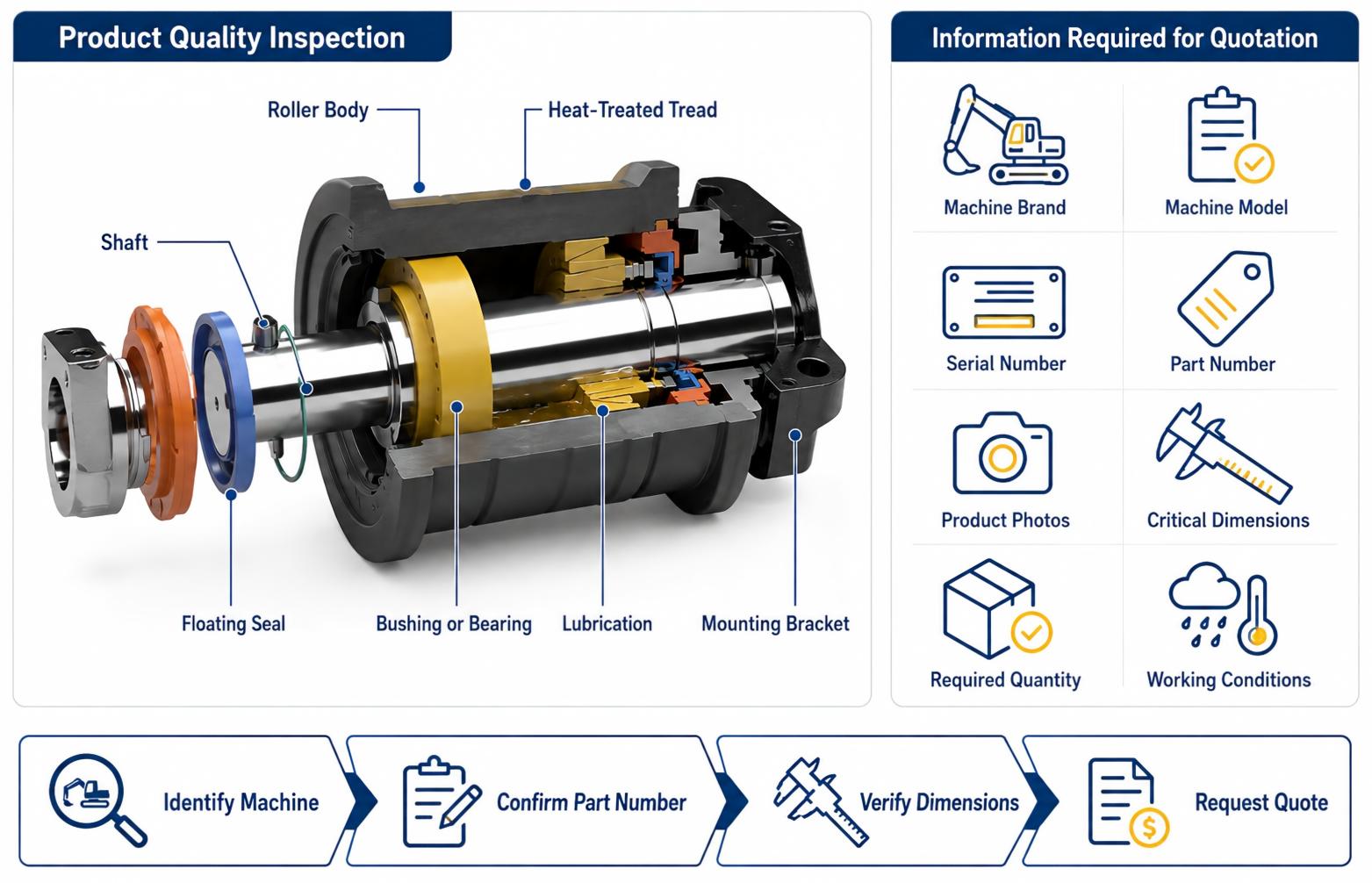

Carrier roller quality inspection and information required for quotation
The supplier is just as important as the product. A professional carrier roller supplier should be able to help verify compatibility before shipment.
Before placing an order, consider whether the supplier can provide:
l Model and part-number cross-referencing
l Technical drawings or dimension sheets
l Material and hardness information
l Quality inspection records
l Clear product photos
l Sample or trial-order support
l Export packaging
l Consistent production capacity
l Traceability and after-sales assistance
For distributors and importers, stable batch quality is particularly important. A low initial price provides little value if product dimensions or service life vary from one shipment to another.
Signs of a worn carrier roller including oil leakage flange damage and uneven wear
Inspect the carrier roller regularly and consider replacement if you notice:
l Deep or uneven tread wear
l A thin, cracked or damaged flange
l Oil leakage
l Excessive movement or wobbling
l A seized roller
l Grinding, squeaking or knocking noises
l Abnormal upper-track sag
l Contact between the track chain and track frame
l Repeated track misalignment
Wear limits vary by machine, so final measurements should be compared with the equipment manufacturer’s service manual.
To receive an accurate quotation, send the supplier:
l Machine brand and model
l Machine serial number
l OEM or reference part number
l Required quantity
l Photos of the old carrier roller
l Critical dimensions
l Working conditions
l Destination country or port
l Packaging requirements
l Required delivery time
Complete information helps prevent mismatched parts and shortens the quotation process.
Choosing the right carrier roller requires more than finding a product that looks similar to the original. Buyers should confirm the machine model and serial number, check the carrier roller part number, verify mounting dimensions and consider the actual operating environment.
Material quality, heat treatment, sealing performance and supplier quality control also determine how reliably the roller performs. A correctly matched, well-manufactured carrier roller helps maintain track alignment, protect other undercarriage parts and reduce unexpected equipment downtime.
If you need help identifying an excavator or bulldozer carrier roller, provide the machine model, serial number, reference number, product photos and dimensions. Accurate information is the first step toward selecting a reliable replacement.
